Overall
- Total pieces 1
-
Included accessories
• (1) Wall Mounting Template
• (1) Paintable Magnetic Grille - Cabinet warranty 5 years
- Drivers warranty 5 years
- Carton 1 6" (15.24 cm) h x 9.06" (23.01 cm) w x 9.06" (23.01 cm) d - 5 lbs (2.27 kg)
In-Wall and In-Ceiling
- Qty included 1
- Availability US
-
Driver complement

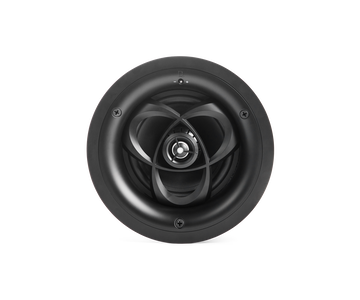

• (1) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter - Tweeter
• (1) 5.25" (13.34 cm) d (Round) BDSS Bass/Mid - Mid/Woofer - Depth 3.63" (9.22 cm)
- Weight 3.7 lbs (1.68 kg)
- Grille dimensions 7.38" (18.75 cm) diameter
- Audio inputs
- Speaker inputs (1) Pair of Heavy Duty, Spring Loaded - na
- Total frequency response 28 Hz → 30,000 Hz
- Nominal impedance 8 ohms
- Max sensitivity (1 watt @ 1 meter) 89 dB
- Peak power handling 175 watts
- A/V receiver crossover settings Small (80 Hz)
- Shape Round
- Dimensions 6.31" (16.03 cm) diameter
- Clearance required for mounting dogs (add to each side of cutout) 1" (2.54 cm)
- Shape Round
- Dimensions 6.31" (16.03 cm) diameter
- Clearance required for mounting dogs (add to each side of cutout) 1" (2.54 cm)
