Specification
- Speaker Type Height Module
- UOM (Sold As) Pair
TRANSDUCER

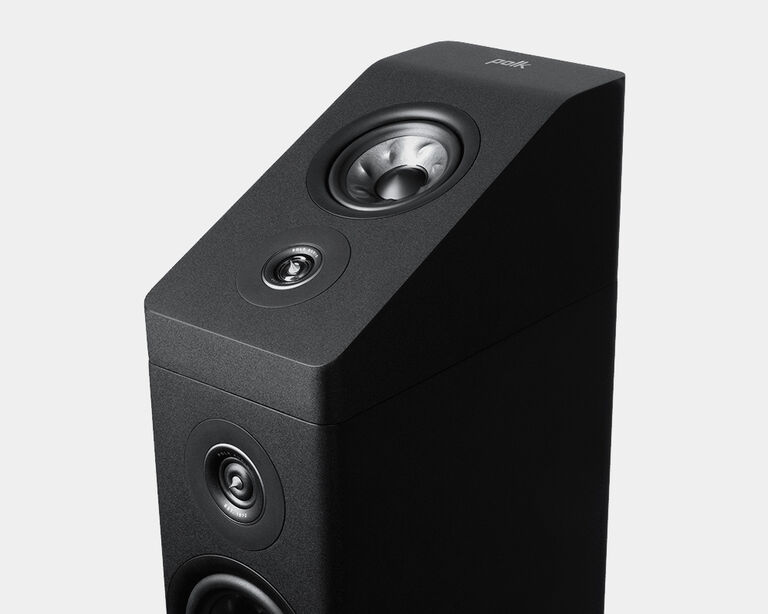

- Tweeter 0.75" Pinnacle Ring Radiator
- Mid-range/Mid-bass -

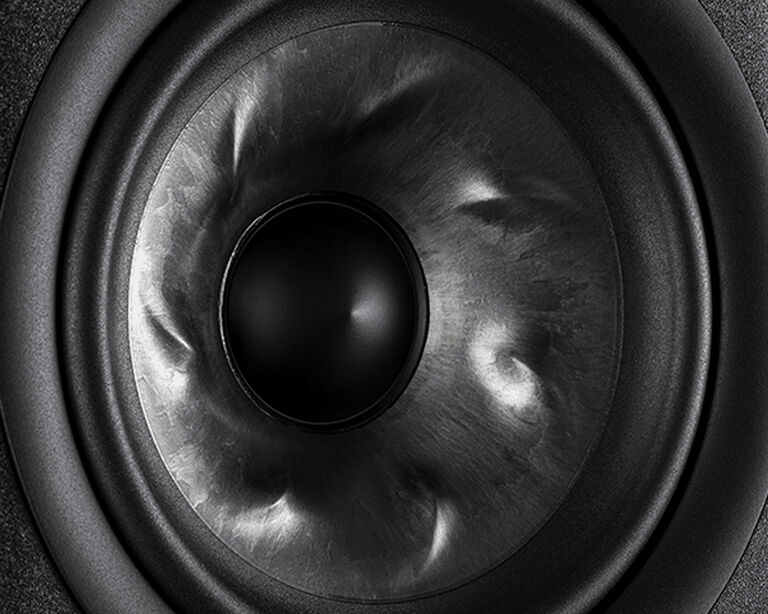

- Woofers 4” Turbine Cone
- Overall Frequency Response 50 – 50kHz (when wall mounted)
- Frequency Response (-3dB limits) 70 – 32kHz (when wall mounted)
- Recommended Amplifier Power 45 - 100W
- Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
- Minimum Impedance (ohms) 4.2Ω
- Sensitivity (2.83V/1m) 85.5dB (when wall mounted)
CROSSOVER
- Tweeter/Mid-range Crossover Frequency 2100
- Mid-range/Mid-bass Crossover Frequency -
MEASUREMENTS
-
Product Dims W x H x D (Includes width of feet)
166 x 158.3 x 320mm
6.5 x 6.2 x 12.6 in - Product Weight (each) 6.6 lbs/3 kg
- Shipping Weight 16 lbs/7.3 kg
CABINETRY
- New CRC (Mid-Range Enclosure Type) -
- Mid-Bass / Woofer Enclosure Type Sealed
- Available Finishes Black / Walnut / White
- Feet Pads
- Wall-Mountable (keyhole slots) Yes
- Binding Posts: Nickel-plated 5-Way Single
Certifications Non-Safety and Regulatory
- Hi-Res Certified Yes
- IMAX Certified N/A
-
Shipping Dims (WxHxD)
415 x 370 x 260mm
(16.3 x 14.6 x 10.2) in
