OVERALL
                                - Total Pieces 1
-
                                        Included Accessories
                                        • (1) Removable Speaker Grille
 • (1) Power Cord
 • (1) Quick Start Guide
 • (1) Product Registration Card
- Electronics Warranty 3 years
- Drivers Warranty 5 years
- Warranty Yes
- Carton 1

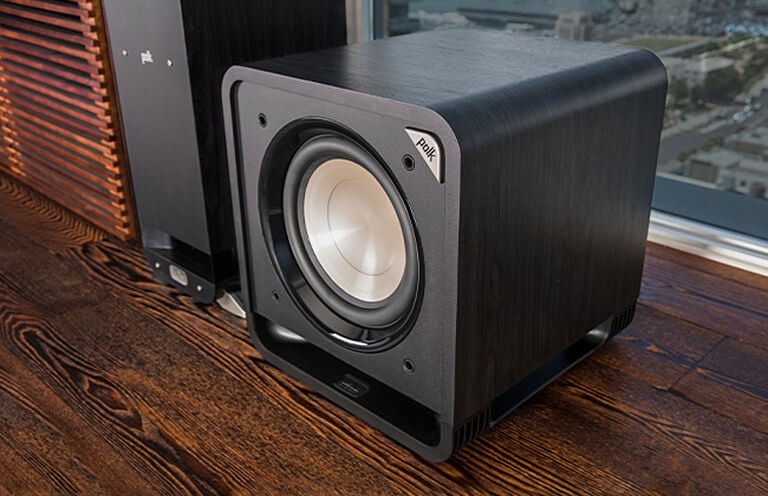

SUBWOOFER
                                - Total Pieces 1
- Height 16.614" (42.2 cm)
- Width 15.118" (38.4 cm)
- Depth 16.1" (40.89 cm)
- Weight 37.75 lbs (17.12 kg)
- Subwoofer Array Driver Enclosure Type Power Port Bass Vented
- Subwoofer Array Driver Complement • (1) 10" (25.4 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer
- Peak Power 200 Watts
- Continuous Power 100 Watts
- Total Frequency Response 25 Hz → .180 Hz
- Nominal Impedance 8 ohms
- Lower and Upper -3dB Limits 30 Hz → .120 Hz
- Amplifier Class Class D
-
                                        Audio Inputs
                                        • LFE (Unfiltered)
 • Stereo Line Level - (2) RCA
- IO Button Location Back Panel
-
                                        Adjusts
                                        • Volume +/-
 • Low Pass Filter (30Hz-120Hz)
 • Phase (0/180°)
 • Power: Auto on/off
 • Power: DC control (12V trigger)
- US Power Cycle Energy Star Compliant with Auto Standby (.5W)
