Reserve R500 Silver System with Denon AVR, Black, dynamic

Reserve R500 Silver System with Denon AVR

Name: Reserve R500 Silver System with Denon AVR
Brand: Bundles
SKU: RESERVE_AVRX2800H_HT
Price: 3949.00 USD
Availability: OutOfStock

Premium Slim 5.1.2 Home Theater System with Denon AVR-X2800H

$3,949.00 ~~Price reduced from $4,643.00~~

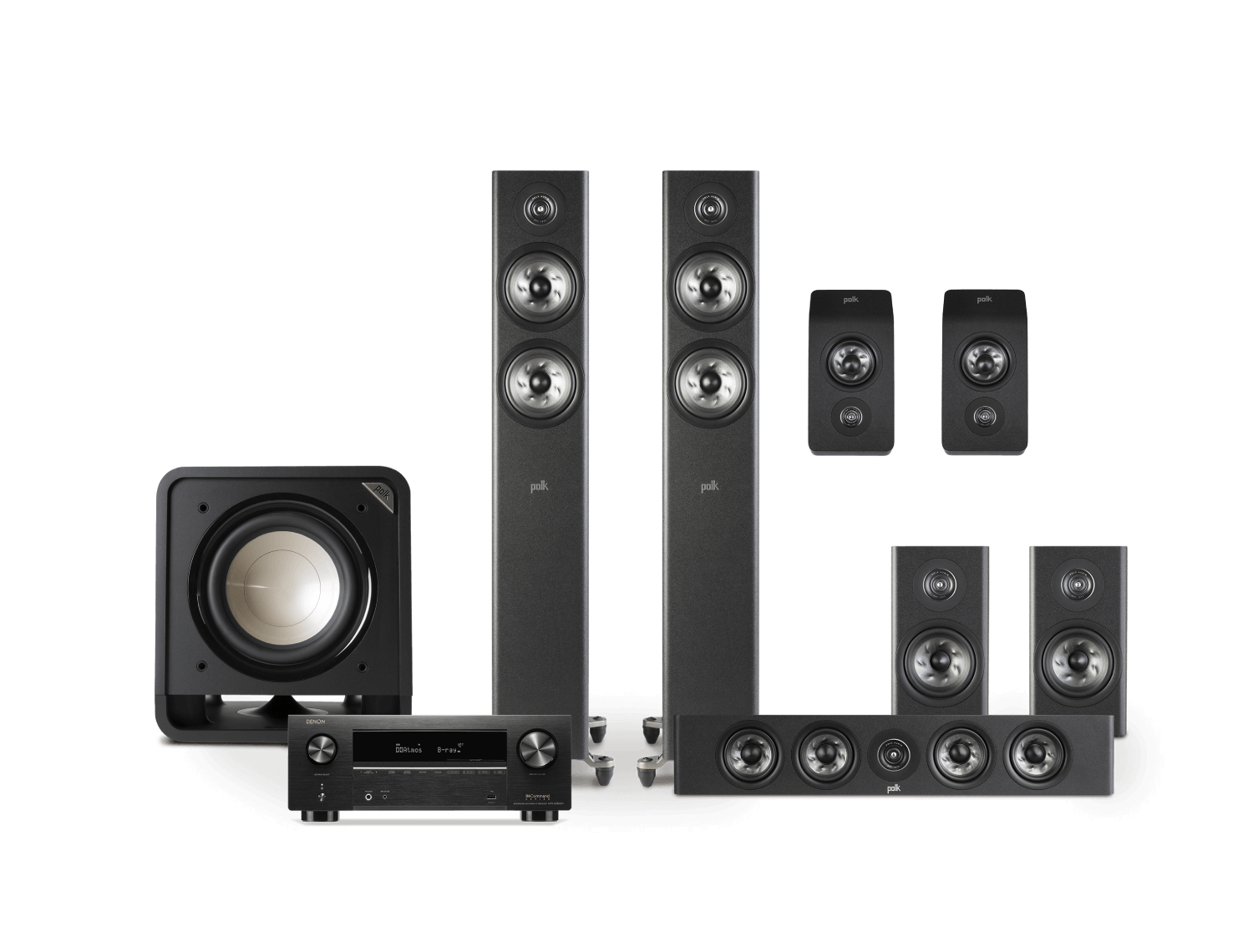

Designed to fit most any room and unapologetically delivering certified sonic performance, this bundle includes dual Reserve R500 tower loudspeakers, the Reserve R100 Bookshelf pair, Reserve R350 Center, a pair of R900 Height Modules, a HTS 10 subwoofer and a Denon AVR-X2800H AV receiver.

5.1.2 channels
3D Audio with Dolby Atmos & DTS:X
Denon AVR-X2800H 7.2 Ch. 95W AV Receiver
Turbine Cone woofers
1" Pinnacle Ring Radiator tweeters
Power Port® 2.0 with X-Port for ultimate bass

Select Quality

Color

Black

Quantity

Availability:

Item Unavailable

Out of Stock

Coming Soon

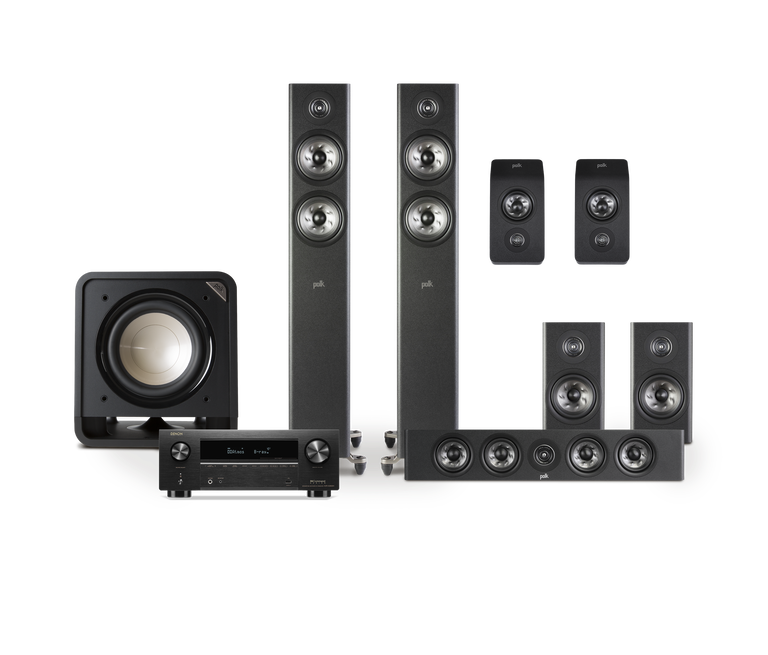

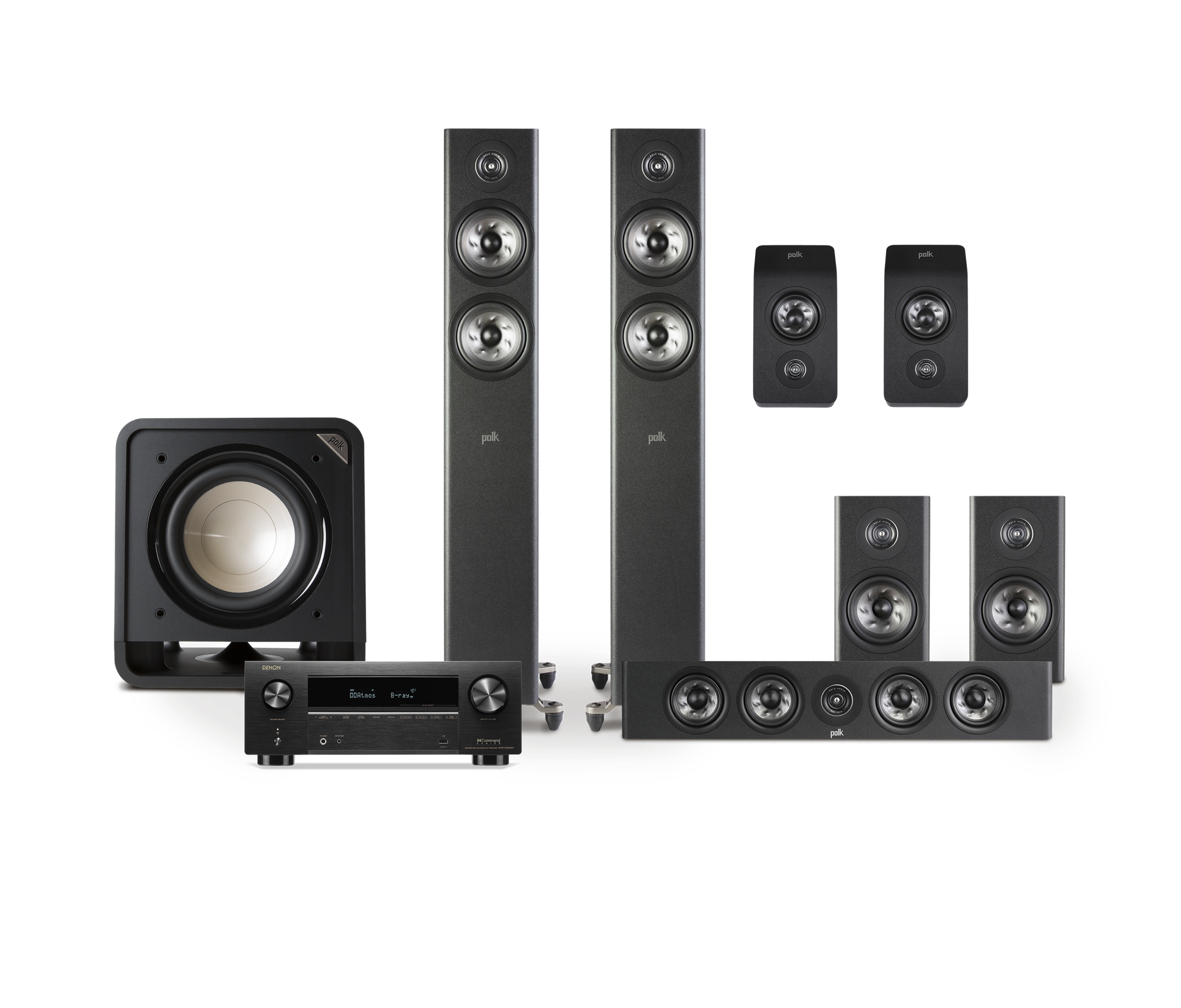

Products in the bundle:

Reserve R500 (Qty 2) Details

Reserve R350 Details

Reserve R100 Details

Reserve R900 Details

AVR-X2800H Details

HTS 10 Details

Reserve R500 Silver System with Denon AVR

$3,949.00 ~~Price reduced from $4,643.00~~

A complete home theater system with amazing sound and elegance

With a slim and elegant design, the Reserve line has a minimal elegance that will fit into any décor. Combine these speakers with a HTS 10 Subwoofer and Denon AVR-X2800H and you get a home theater that will sound as powerful and immersive as it looks.

Complete purity of sound

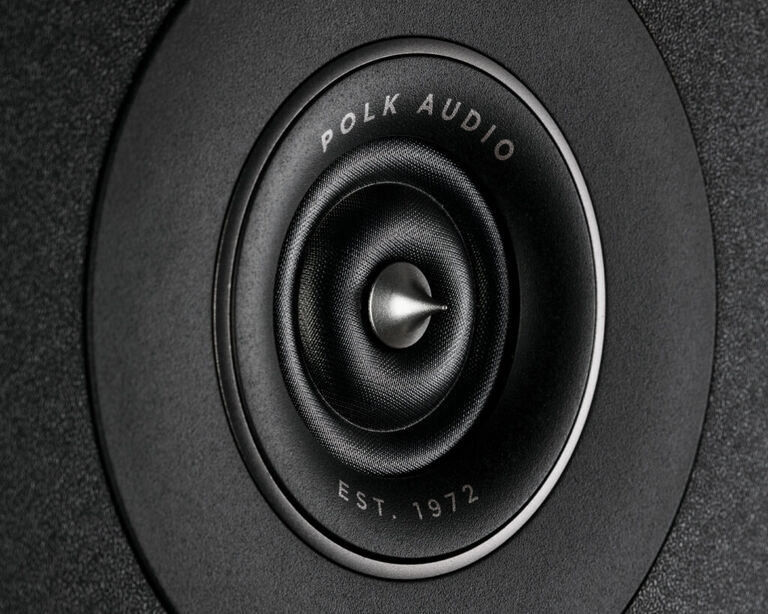

Pinnacle Ring Radiator Tweeters

Reserve Series speakers feature Pinnacle Ring Radiator tweeters which have distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

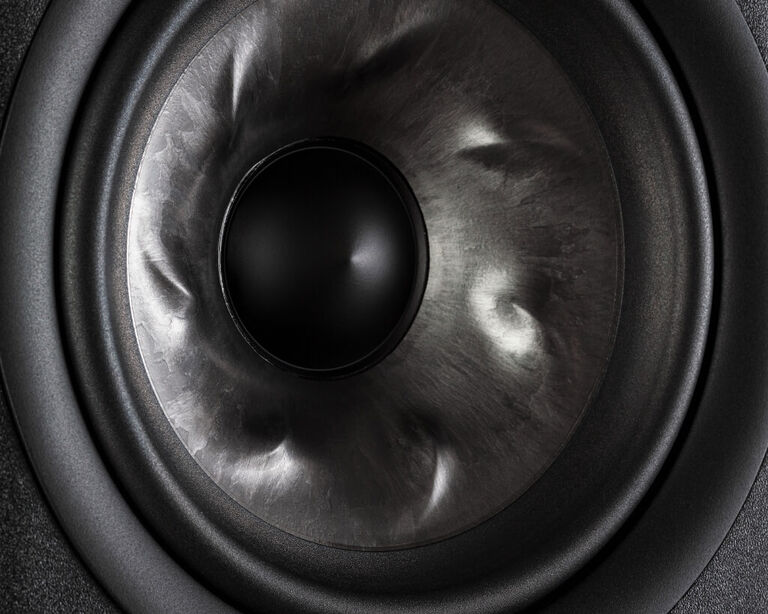

Turbine Cone Woofers

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation available with all Reserve Series speakers means that each woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

X-Port

Reserve R500, R350 and R100 speakers integrate X-Port, featuring a set of closed-pipe resonators, called Eigentone filters that are tuned to absorb unwanted port and cabinet resonances, providing you pure, unadulterated, crystal clear sound and more bass output.

Reserve R500 Silver System with Denon AVR

Details & Specifications

RESERVE R500

Speaker Type Floorstanding Loudspeaker
UOM (Sold As) Each
Tweeter 1" Pinnacle Ring Radiator
Mid-range/Mid-bass -
Woofers Two 5 ¼” Turbine Cone
Overall Frequency Response 32Hz - 50kHz
Frequency Response (-3dB limits) 49Hz - 36kHz
Recommended Amplifier Power 25 - 200W
Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
Minimum Impedance (ohms) 3.9Ω
Sensitivity (2.83V/1m) 87dB
Tweeter/Mid-range Crossover Frequency 2500
Mid-range/Mid-bass Crossover Frequency -
Product Dims W x H x D (Includes width of feet) 255.4 x 1044.5 x 348.8mm
10.1 x 41.1 x 13.7 in
Product Weight (each) 39 lbs/17.7 kg
Shipping Weight 49.6 lbs/22.5 kg
New CRC (Mid-Range Enclosure Type) -
Mid-Bass / Woofer Enclosure Type Rear X-Port
Available Finishes Black / Walnut / White
Feet Spike and Pad
Wall-Mountable (keyhole slots) No
Binding Posts: Nickel-plated 5-Way Single
Hi-Res Certified Yes
IMAX Certified Yes
Shipping Dims (WxHxD) 456 x 350 x 1135mm
(17.9x 13.8 x 44.7) in

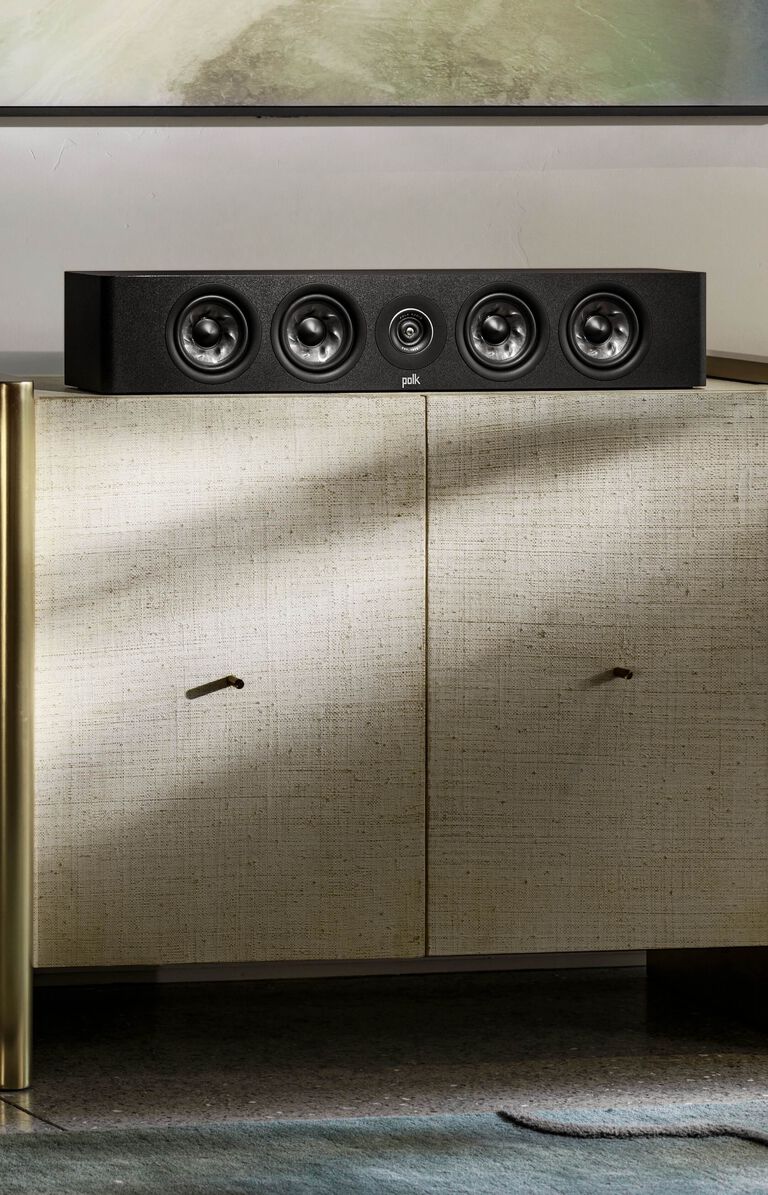

RESERVE R350

Speaker Type Low Profile L/C/R Center Channel
(Use as Left, center or right)
UOM (Sold As) Each
Tweeter 1" Pinnacle Ring Radiator
Mid-range/Mid-bass -
Woofers Four 4” Turbine Cone
Overall Frequency Response 50Hz - 50kHz
Frequency Response (-3dB limits) 75Hz - 35kHz
Recommended Amplifier Power 25 - 200W
Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
Minimum Impedance (ohms) 3.9Ω
Sensitivity (2.83V/1m) 87dB
Tweeter/Mid-range Crossover Frequency 2700
Mid-range/Mid-bass Crossover Frequency 1400
Product Dims W x H x D (Includes width of feet) 762 x 141 x 187.5mm
30 x 5.5 x 7.4 in
Product Weight (each) 20 lbs/9 kg
Shipping Weight 23.7 lbs/10.8 kg
New CRC (Mid-Range Enclosure Type) -
Mid-Bass / Woofer Enclosure Type Sealed
Available Finishes Black / Walnut / White
Feet Rubber pads
Wall-Mountable (keyhole slots) Yes
Binding Posts: Nickel-plated 5-Way Single
Hi-Res Certified Yes
IMAX Certified No
Shipping Dims (WxHxD) 867 x 264 x 230mm
(34.1 x 10.4 x 9) in

RESERVE R100

Speaker Type Standmount (Bookshelf)
UOM (Sold As) Pair
Tweeter 1" Pinnacle Ring Radiator
Mid-range/Mid-bass -
Woofers 5 ¼” Turbine Cone
Overall Frequency Response 44Hz - 50kHz
Frequency Response (-3dB limits) 58Hz - 39kHz
Recommended Amplifier Power 30 - 150W
Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
Minimum Impedance (ohms) 3.6Ω
Sensitivity (2.83V/1m) 86dB
Tweeter/Mid-range Crossover Frequency 2700
Mid-range/Mid-bass Crossover Frequency -
Product Dims W x H x D (Includes width of feet) 166 x 324 x 259.5mm
6.5 x 12.8 x 10.2 in
Product Weight (each) 12.2 lbs/5.5 kg
Shipping Weight 28.4 lbs/12.9 kg
New CRC (Mid-Range Enclosure Type) -
Mid-Bass / Woofer Enclosure Type Rear X-Port
Available Finishes Black / Walnut / White
Feet Rubber pads
Binding Posts: Nickel-plated 5-Way Single
Hi-Res Certified Yes
IMAX Certified No
Shipping Dims (WxHxD) 478 x 348 x 422mm
(18.8 x 13.7 x 16.6) in

RESERVE R900

Speaker Type Height Module
UOM (Sold As) Pair
Tweeter 0.75" Pinnacle Ring Radiator
Mid-range/Mid-bass -
Woofers 4” Turbine Cone
Overall Frequency Response 50 – 50kHz (when wall mounted)
Frequency Response (-3dB limits) 70 – 32kHz (when wall mounted)
Recommended Amplifier Power 45 - 100W
Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
Minimum Impedance (ohms) 4.2Ω
Sensitivity (2.83V/1m) 85.5dB (when wall mounted)
Tweeter/Mid-range Crossover Frequency 2100
Mid-range/Mid-bass Crossover Frequency -
Product Dims W x H x D (Includes width of feet) 166 x 158.3 x 320mm
6.5 x 6.2 x 12.6 in
Product Weight (each) 6.6 lbs/3 kg
Shipping Weight 16 lbs/7.3 kg
New CRC (Mid-Range Enclosure Type) -
Mid-Bass / Woofer Enclosure Type Sealed
Available Finishes Black / Walnut / White
Feet Pads
Wall-Mountable (keyhole slots) Yes
Binding Posts: Nickel-plated 5-Way Single
Hi-Res Certified Yes
IMAX Certified N/A
Shipping Dims (WxHxD) 415 x 370 x 260mm
(16.3 x 14.6 x 10.2) in

AVR-X2800H

DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No
DTS Neo:X, DTS Neural:X No, Yes
DTS Virtual:X Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround No, Yes
Multichannel Stereo Yes
Max. Number of Processing (Pre-Amp) Channels 7.1
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
Compressed Audio Restorer Yes
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
AirPlay 2 Yes
TuneIn Yes
Spotify Connect Yes
Pandora Yes
SiriusXM Yes
Roon Tested Yes
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI Inputs: Back, Front 6, No
HDCP2.3 support Yes
HDMI Outputs: Main, Zone 2, No
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No
3D Signal Pass-through Yes
8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
Audio Return Channel (ARC), Enhanced ARC Yes, Yes
Auto LipSync Yes
Multi-Room Zones 2
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out Yes, Yes
IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
Remote In / Out Yes, Yes
HDMI Diagnostics Yes
Auto Speaker Setup by Microphone Audyssey MultEQ XT
Front Display 1-Line FLD
GUI Languages 3
Setup Assistent Yes
Quick Select Plus, Quick Select Yes, No
Variable Crossover Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes
HDMI In, Out 6, 2
Multi-Room Video Out: Video, HDMI No, No
Analog In, Out 4, No
Phono (MM) In Yes
Digital In: Optical, Coaxial 2, 1
Multi-Room Out: Analog, Digital 1, No
Multichannel Pre-out Yes (0.2)
Subwoofer Out 2
Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes
Number of Speaker Terminals 7
Speaker A / B Assignable
Bi-amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone Yes, No, No
AM/FM Tuner Yes
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 95W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 125W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 185W
System Remote Control RC-1253
Pre-Programmed, Learnable, LCD Display No, No, No
Power Consumption in W 500
Power Consumption No-Sound (ECO On / Off) in W 35W/75W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1 x 13.4 x 6.6
( 17.1 x 13.4 x 9.3 )
【 17.1 x 13.0 x 6.6 】
Weight in LBS 21.0
Weight in LBS (Packaging) 25.4

HTS 10

Total Pieces 1
Included Accessories • (1) Removable Speaker Grille
• (1) Power Cord
• (1) Quick Start Guide
• (1) Product Registration Card
Electronics Warranty 3 years
Drivers Warranty 5 years
Original Purchaser Only Yes
Carton 1
Total Pieces 1
Height 16.614" (42.2 cm)
Width 15.118" (38.4 cm)
Depth 16.1" (40.89 cm)
Weight 37.75 lbs (17.12 kg)
Subwoofer Array Driver Enclosure Type Power Port Bass Vented
Subwoofer Array Driver Complement • (1) 10" (25.4 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer
Peak Power 200 Watts
Continuous Power 100 Watts
Total Frequency Response 25 Hz → .180 Hz
Nominal Impedance 8 ohms
Lower and Upper -3dB Limits 30 Hz → .120 Hz
Amplifier Class Class D
Audio Inputs • LFE (Unfiltered)
• Stereo Line Level - (2) RCA
IO Button Location Back Panel
Adjusts • Volume +/-
• Low Pass Filter (30Hz-120Hz)
• Phase (0/180°)
• Power: Auto on/off
• Power: DC control (12V trigger)
US Power Cycle Energy Star Compliant with Auto Standby (.5W)
