Multichannel Surround
- DTS HD Master / DTS:X No / No
- DTS Neo:X / DTS Neural:X No / No
- DTS Virtual:X No
- IMAX Enhanced No
- Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization No / No / No
- Dolby ProLogic Ilz / Dolby Surround No / No
- Auro 3D No
- Audyssey DSX No
- Multichannel Stereo No
- Max Number of Processing (Preamp) Channels 2.1
Sound Enhancements
- Mono Block Power Amp Construction No
- Discrete Power Amplifier Yes
- D.D.S.C. HD Digital No
- Pure Direct Yes
- Gold Plated RCA Terminals Yes
- Clock Jitter Reducer No
- Alpha Processing No
- Denon Link HD No
- Audyssey No
- Audyssey Dynamic EQ / Dynamic Volume No / No
- Audyssey LFC No
- Compressed Audio Restorer Yes
Network
- Media Server Yes
- HEOS Wireless Multi-Room Technology Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes (update)
- Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
- Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
- Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- FLAC HD 192/24 Yes
- WAV 192/24 Yes
- ALAC 192/24 Yes
- Gapless playback Yes (FLAC, WAV ,ALAC ,DSD)
- Photo Streaming (JPEG) No
- Internet Radio Yes (TuneIn)
- Spotify* Yes (connect)
- Pandora Yes
- SiriusXM* Yes
- Other Streaming Services * Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
- HEOS App Control Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
- Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes
HDMI
- HDMI Inputs: Back / Front 5 / No
- HDCP 2.2 support Yes (HDCP 2.3)
- HDMI Outputs: Main / Zone 1 / No
- Video Conversion Analog -> HDMI No
- Analog to HDMI Scaling No
- HDMI to HDMI Scaling No
- GUI Overlay on HDMI Yes
- HDMI: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
- Enhanced ARC No
- HDR / HLG / Dolby Vision Yes (HDR10) / Yes / No
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- 3D Signal Pass-through Yes
- 4K Signal Pass-through / Scaling / GUI Overlay Yes / No / Yes
- HDMI Pass-Through in Standby Mode Yes
- Picture Adjust / Noise Reduction No / No
- CEC Yes
- DSD Audio Capability No
- Audio Return Channel Yes
- Auto LipSync Yes
Multi-room CI
- Multi-Room Zones 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
- Zone Audio Output: Speaker / Preout No / Yes
- Zone HDMI Output from HDMI Source No
- IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
- Remote In / Out Yes / No
- DC Trigger Output No
- HDMI Diagnostics Yes
Others
- Auto Speaker Setup by Microphone No
- FL Display 1 line
- Graphic User Interface - GUI Hybrid GUI
- ISF Certification No
- GUI Languages 3
- Setup Assistant Yes
- Quick Select Plus / Quick Select Yes / No
- Firmware Update by: Network / USB Yes / Yes
- Variable Cross Over No
- Optimized Bass Redirection No
- Bass Sync No
- ECO Mode Yes
- Auto Power Off Yes
- Sleep Timer Yes

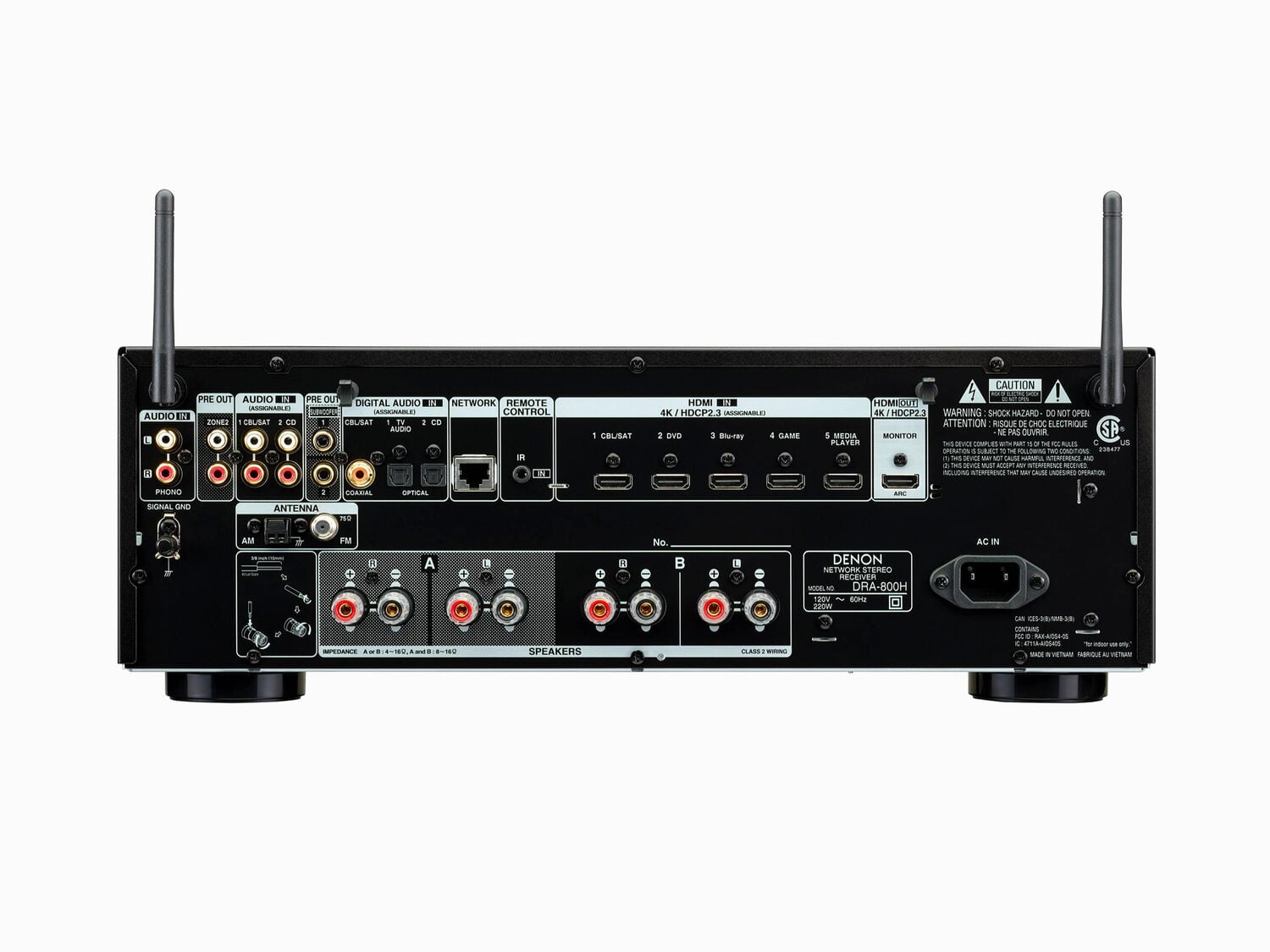

Inputs Outputs
- Composite In / Out No / No
- Component In / Out No / No
- HDMI In / Out 5 / 1
- Multi-room Video Out: Video / HDMI No / No
- 2 / No
- Phono (MM) In Yes
- Digital In: Optical / Coaxial 2 / 1
- Multi-room Out: Analog / Digital 1 / 0
- Multichannel Preout Yes (0.2) / No
- Subwoofer Out 2
- 7.1 Multichannel Input No

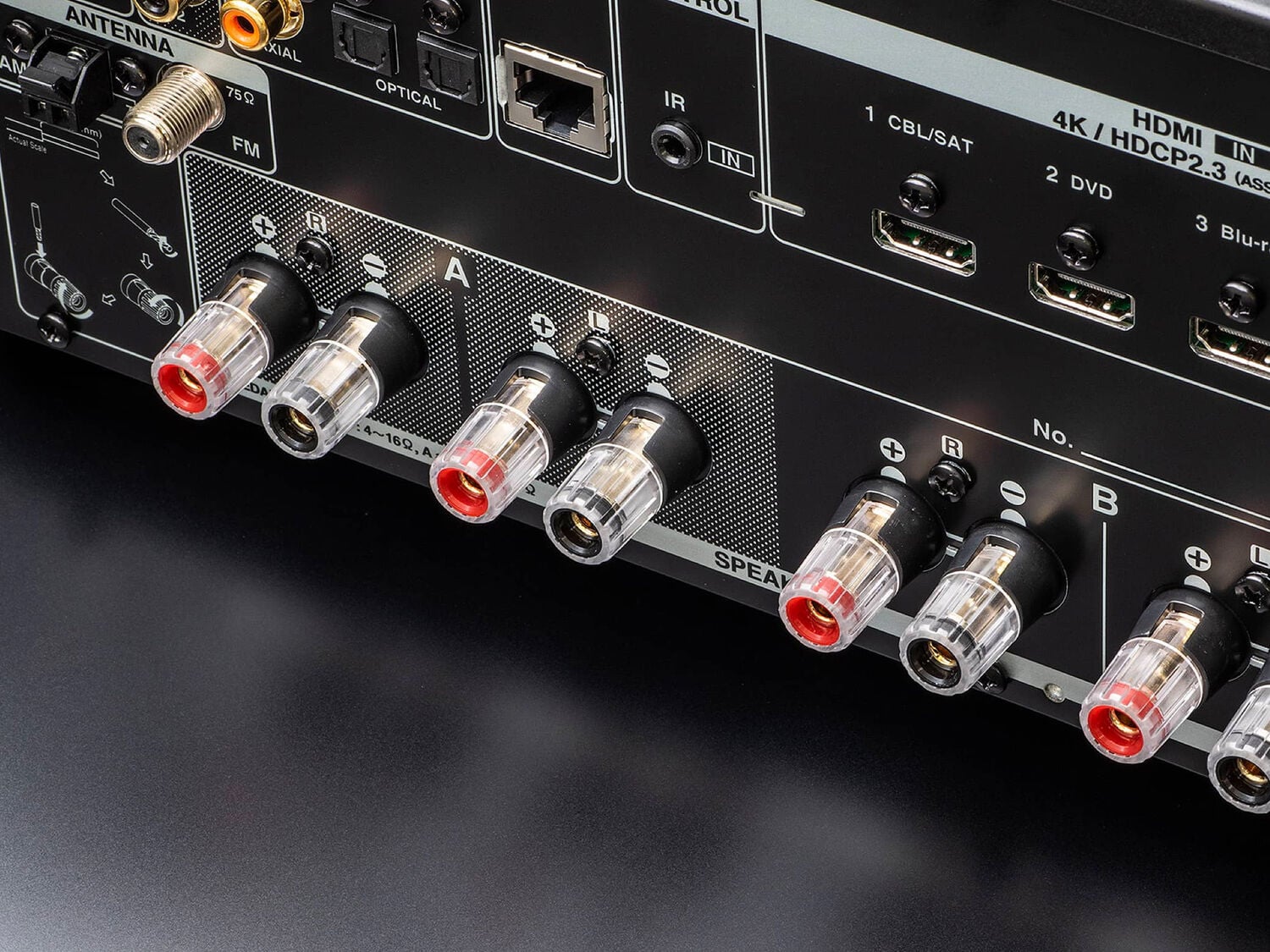

- Speaker Terminal: Gold Plated Screw / Regular Screw Yes / No
- Number of Speaker Terminals 4
- Speaker A / B Yes
- Bi-amp Drive No
- Multi-Room Speaker Terminal No
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
- USB Audio / Made for iPod / Made for iPhone Yes / No / No
- AM/FM Tuner Yes
Specifications
- Number of Power Amps 2
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) No
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 175 W
General
- Metal Front Panel No

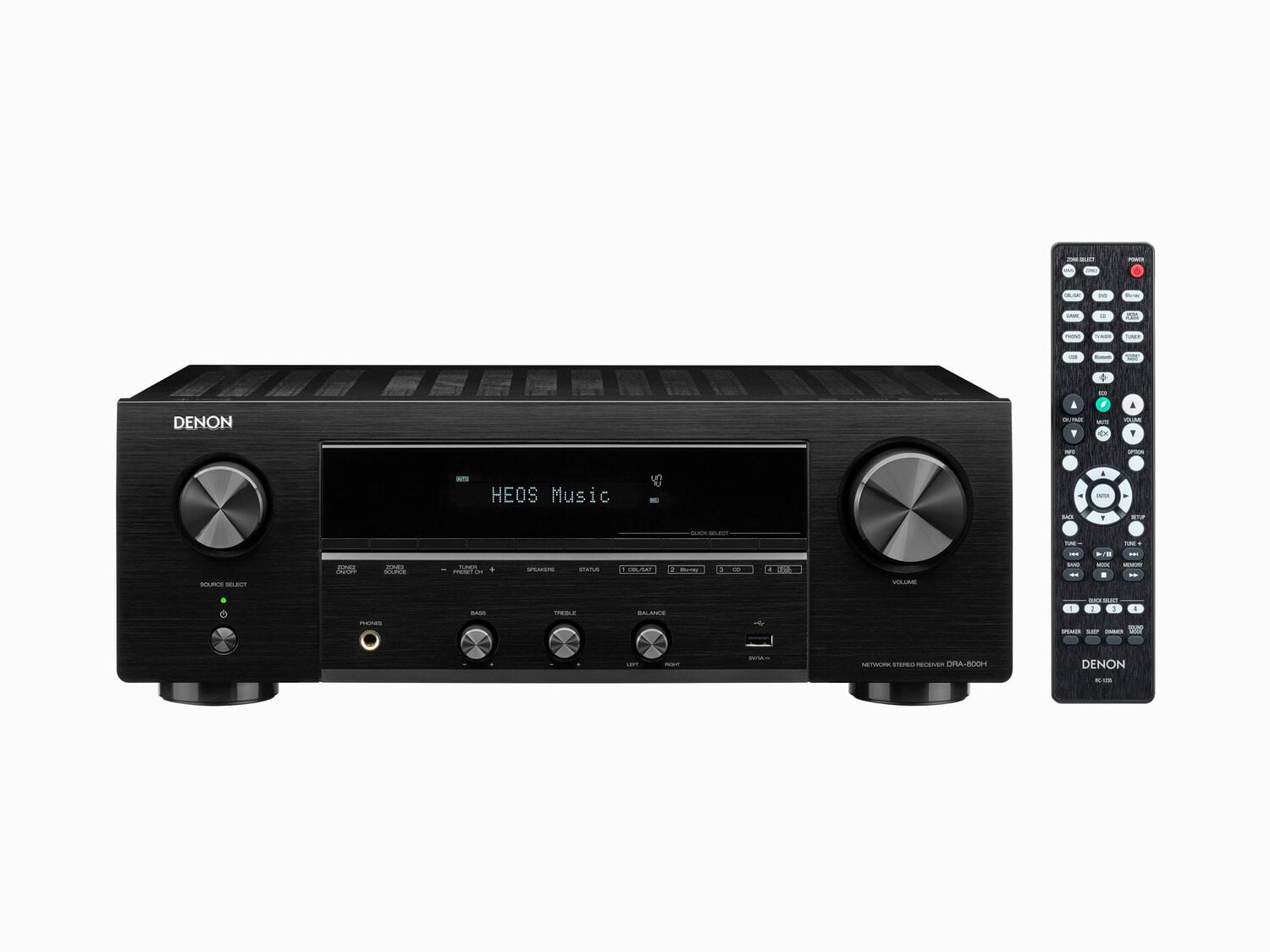

- System Remote Control RC-1235
- Pre-programmed / Learnable / LCD Display No / No / No
- Power Consumption in W TBD
- Power Consumption No-Sound (ECO On / Off) in W TBD
- Standby Consumption in W 0.1
- CEC Standby Consumption in W 0.5
-
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5) - Weight in LBS 18.3
- Power Supply AC 120 V, 60 Hz
- Speaker impedance 4 - 16Ω/ohms
- Input sensitivity 200 mV
- Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
- S/N Ratio 98 dB (IHF-A weighted, Direct mode)
- FM section (Tuning frequency range) 87.5 - 107.9 MHz
- AM section (Tuning frequency range) 520 kHz – 1710 kHz
