OVERALL
- Total Pieces 1

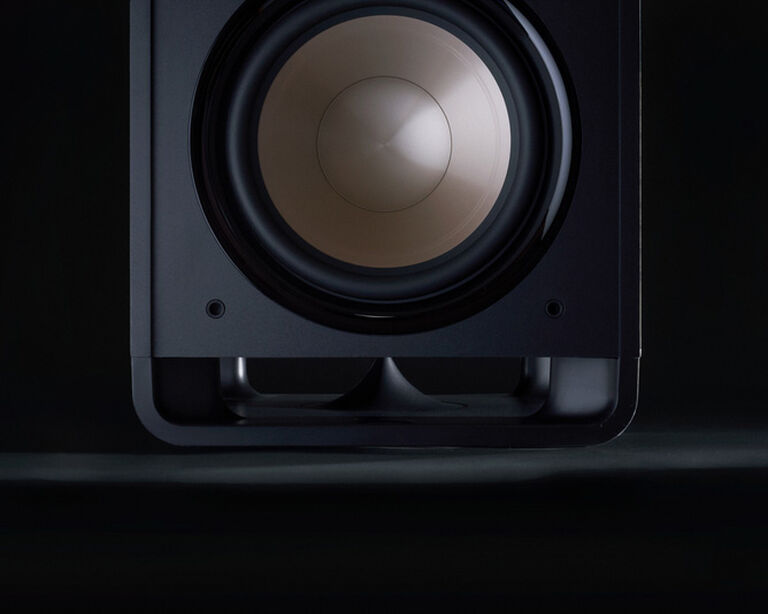

SUBWOOFER
- Total Pieces 1
- Height 18.5" (46.99 cm)
- Width 17.126" (43.5 cm)
- Depth 18.11" (46 cm)
- Weight 49.9 lbs (22.63 kg)
- Subwoofer Array Driver Enclosure Type Power Port Bass Vented
- Subwoofer Array Driver Complement •(1) 12" (30.48 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer
- Peak Power 400 Watts
- Continuous Power 200 Watts
- Amplifier Class Class D
- Total Frequency Response 22 Hz → .180 Hz
- Nominal Impedance 8 ohms
- Lower and Upper -3dB Limits 28 Hz → .120 Hz
- IO Button Location Back Panel
-
Adjusts
•Volume +/-
•Low Pass Filter (40Hz-160Hz)
•Phase (0/180°)
•Power: Auto on/off
•Power: DC control (12V trigger) -
Audio Inputs
•LFE (Unfiltered)
•Stereo Line Level - (2) RCA - US Power Cycle Energy Star Compliant with Auto Standby (.5W)
HTS 12 Subwoofer
- Total Pieces 1
- Height 18.5" (46.99 cm)
- Width 17.126" (43.5 cm)
- Depth 18.11" (46 cm)
- Weight 49.9 lbs (22.63 kg)
- Subwoofer Array Driver Enclosure Type Power Port Bass Vented
- Subwoofer Array Driver Complement •(1) 12" (30.48 cm) d (Round) Polypropylene Dynamic Balance and Klippel optimized driver - Subwoofer
- Peak Power 400 Watts
- Continuous Power 200 Watts
- Amplifier Class Class D
- Total Frequency Response 22 Hz → .180 Hz
- Nominal Impedance 8 ohms
- Lower and Upper -3dB Limits 28 Hz → .120 Hz
- IO Button Location Back Panel
- Adjusts •Volume +/- •Low Pass Filter (40Hz-160Hz)•Phase (0/180°)•Power: Auto on/off•Power: DC control (12V trigger)
- Audio Inputs •LFE (Unfiltered)•Stereo Line Level - (2) RCA
- US Power Cycle Energy Star Compliant with Auto Standby (.5W)
Signature Elite ES15 Bookshelf
- Availability US Internationally
- Qty Included Pair
- Width 7.5" (19.1 cm)
- Height 12" (30.48 cm)
- Weight 13 lbs (5.9 kg)
- Depth 10.2" (25.9 cm)
- Orientation Horizontal
- Front Array Driver Complement • (1) 1" (2.54 cm) d (Round) Terylene High-Res Dome Tweeter• (1) 5.25" (13.34 cm) d (Round) Dynamic Balance Mica Reinforced Polypropylene Driver
- Impedance Compatible with 8 ohm outputs
- Mounting Type Key hole slot
- Max Sensitivity (1 watt @ 1 meter) 88dB
- Recommended Amplifier Power Per Channel 20 watts → 100 watts
- Crossover Frequency 2500 Hz
- Total Frequency Response 48 Hz → 40,000 Hz
- Inputs Single gold-plated 5-way binding posts
Signature Elite ES30 Center
- Qty Included 1
- Width 20" (50.8 cm)
- Height 7.5" (19.05 cm)
- Depth 10.6" (26.92 cm)
- Weight 19 lbs (8.62 kg)
- Orientation Horizontal
- Driver Complement • (1) 1" (2.54 cm) d (Round) Terylene High-Res Dome Tweeter• (2) 5.25" (13.34 cm) d (Round) Dynamic Balance Mica Reinforced Polypropylene Drivers
- Driver Enclosure Type PowerPort Bass Vented
- Impedance Compatible with 4 and 8 ohm outputs
- Recommended Amplifier Power Per Channel 20 watts → 150 watts
- Inputs Single gold-plated 5-way binding posts
- Max Sensitivity (1 watt @ 1 meter) 89 dB
- Crossover Frequency 2500 Hz
- Total Frequency Response 55 Hz → 40,000 Hz
Signature Elite ES55 Tower x2
- Qty Included 1
- Width 8.5" (21.6 cm)
- Height 41.5" (105.41 cm)
- Depth 12.5" (31.75 cm)
- Weight 44 lbs (19.96 kg)
- Front Array Driver Complement \t• (1) 1" (2.54 cm) d (Round) Terylene High-Res Dome Tweeter• (2) 6.5" (16.51 cm) d (Round) Dynamic Balance Mica Reinforced Polypropylene Drivers
- Driver Enclosure Type Power Port Bass Vented
- Width with Base 11.7" (29.7 cm)
- Impedance Compatible with 4 and 8 ohm outputs
- Sensitivity (1 watt @ 1 meter) 90 dB
- Crossover Frequency 2,500 Hz
- Total Frequency Response 40 Hz → 40,000 Hz
- Type 2-way
- Recommended Amplifier Power Per Channel 20 watts → 200 watts
- Inputs Dual gold-plated 5-way binding posts
