700-LS

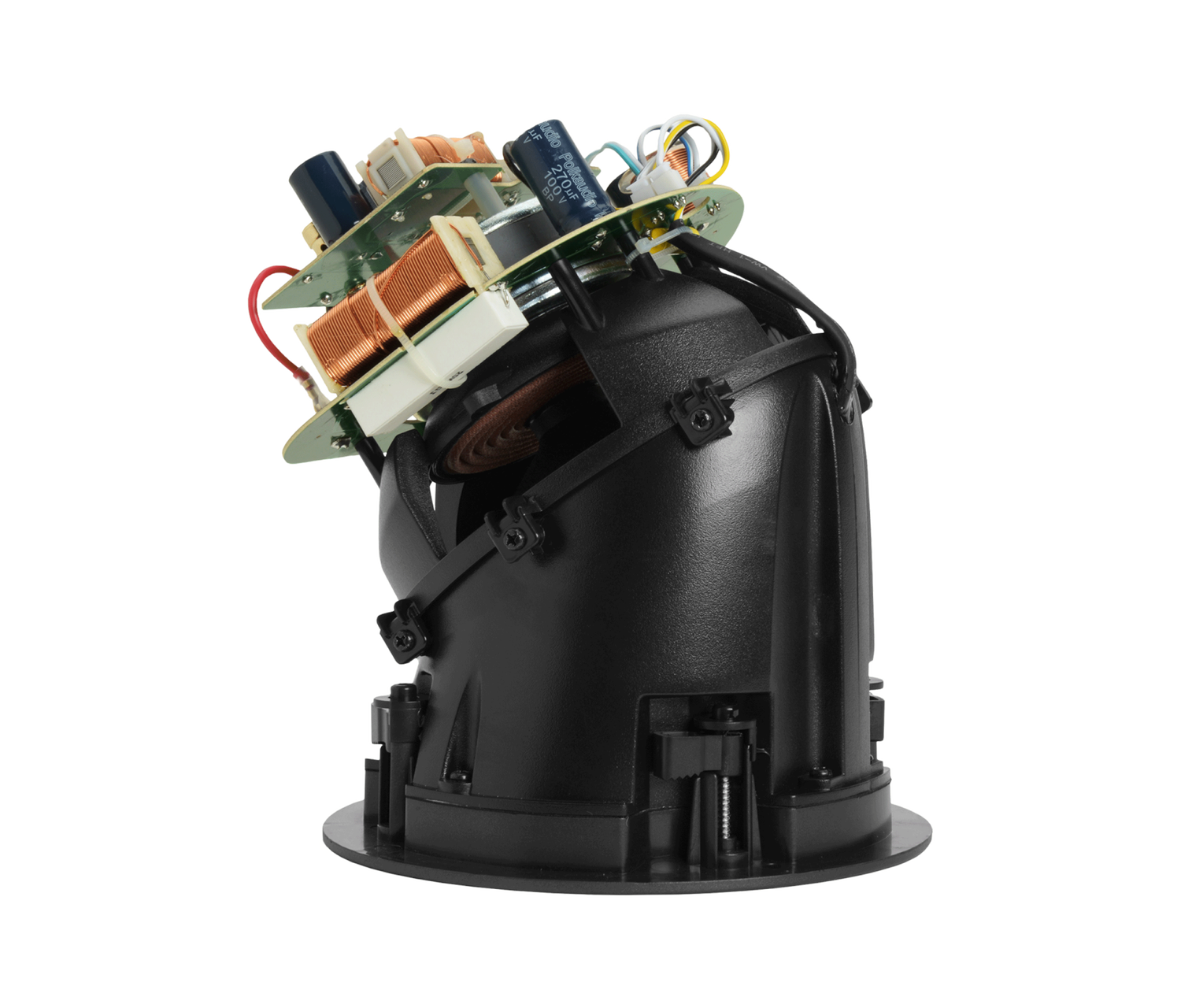

High-Quality Three-Way In-Ceiling Speaker with 5" x 6.5" Woofer

Stacking the woofer behind the driver unit is an innovation so extreme you won't believe the performance that results! Full-size speaker dynamics and a small-diameter cut-out built-in that virtually disappears into your decor. The Vanishing Series puts high performance stealth audio at your fingertips.

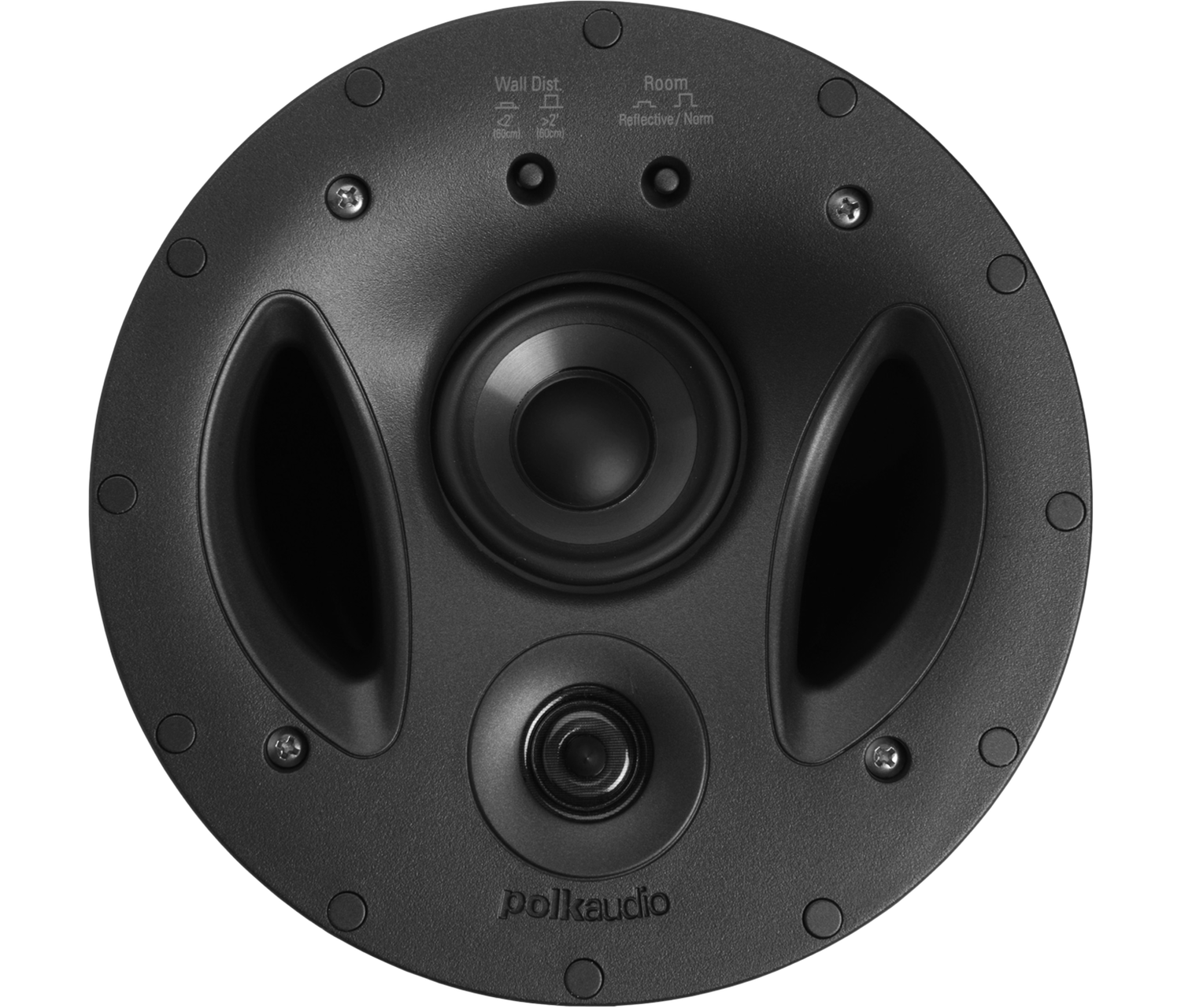

5" x 6.5" Dynamic Balance® woofer & 2.5" midrange driver
.75" Ring Radiator tweeter

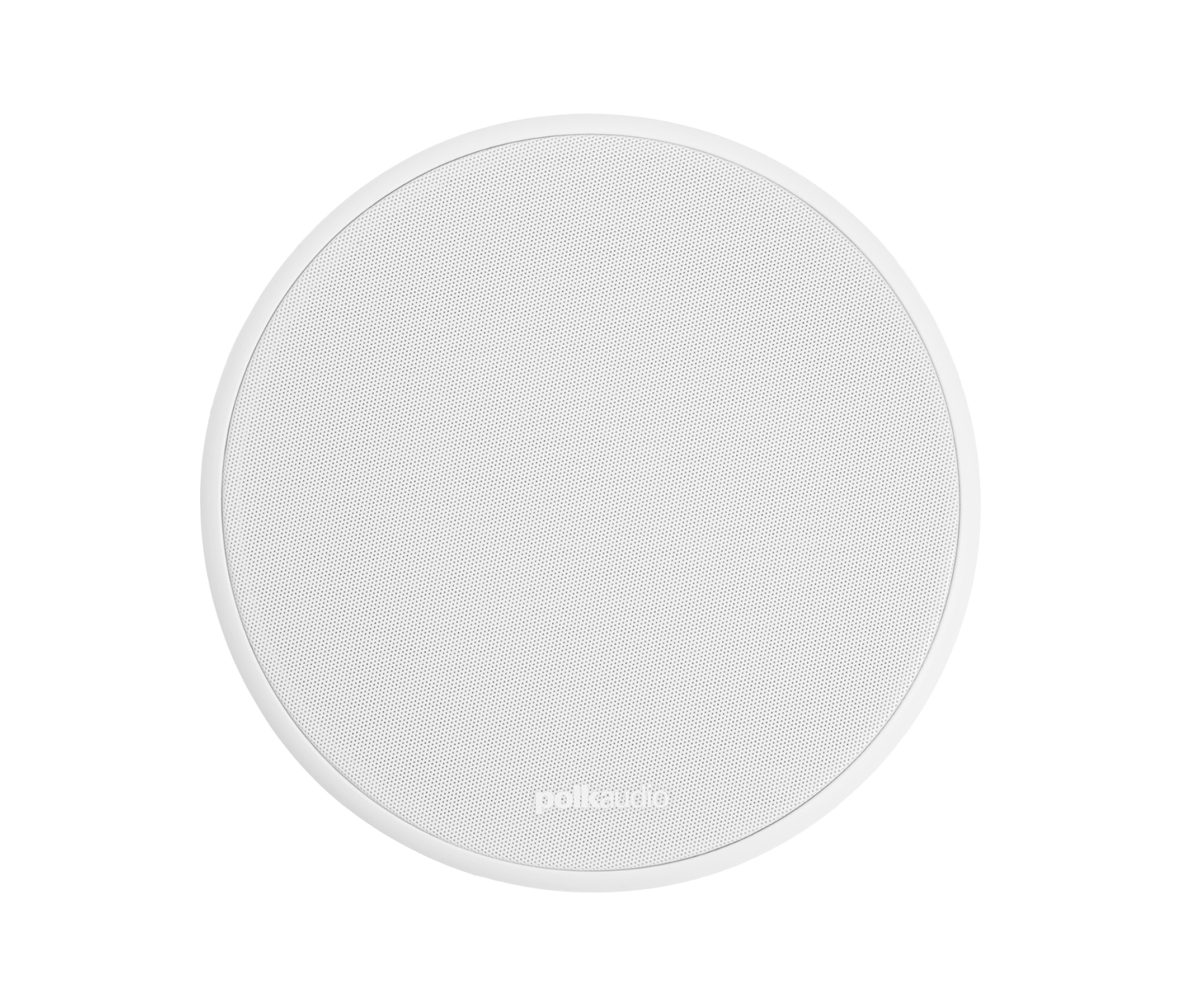

Paintable Wafer-thin Sheer Grille™
Perfect for Dolby Atmos, DTS:X, Auro 3D, and IMAX Enhanced
Timbre matched to Legend, Reserve & LSiM Series

700-LS

Details & Specifications

OVERALL

Total Pieces 1
Included Accessories • (1) Polk’s Wafer-thin Sheer Grille™ - White, Paintable
Optional Accessories • (1) PB 50 - Pre-Construction Bracket - Sold Separate
Carton 1 9.75" (24.77 cm) h x 11" (27.94 cm) w x 13" (33.02 cm) d - 9 lbs (4.08 kg)

IN-CEILING SPEAKER

Qty Included 1
Availability US
Depth 8.5" (21.59 cm)
Driver Complement • (1) 2.5" (6.35 cm) d (Round) Dynamic Balance driver with aerated polypropylene cone - Midrange
• (1) 7" (17.78 cm) d (Round) Dynamic Balance woofer with mineral-filled polypropylene cone - Subwoofer
• (1) 0.75" (1.91 cm) d (Round) Ring radiator - Tweeter
Grille Dimensions 8.13" (20.65 cm) diameter
Shape Round
Dimensions 6.5" (16.51 cm) diameter
Total Frequency Response 32 Hz → 33,000 Hz
Nominal Impedance 8 ohms
Sensitivity (1 watt @ 1 meter) 90 dB
Lower and Upper -3dB Limits 45 Hz → 29,000 Hz
Audio Inputs -
Speaker Inputs (1) Pair of Push Connectors - Gold-Plated
Recommended Amplifier Power Per Channel 10 watts → 150 watts
