OVERALL
- Total Pieces 1
- Included Accessories • (1) Rear kickstand
- Electronics Warranty 1 years
- Cabinet Warranty 5 years
- Drivers Warranty 5 years
- Warranty Yes
- Carton 1 30 lbs (13.61 kg)
- Carton 2 11.5" (29.21 cm) h x 27" (68.58 cm) w x 16.75" (42.55 cm) d - 29 lbs (13.15 kg)
- Total Pieces 1
- Included Accessories • (1) Rear kickstand
- Electronics Warranty 1 years
- Cabinet Warranty 5 years
- Drivers Warranty 5 years
- Warranty Yes
- Carton 1 30 lbs (13.61 kg)
- Carton 2 11.5" (29.21 cm) h x 27" (68.58 cm) w x 16.75" (42.55 cm) d - 29 lbs (13.15 kg)

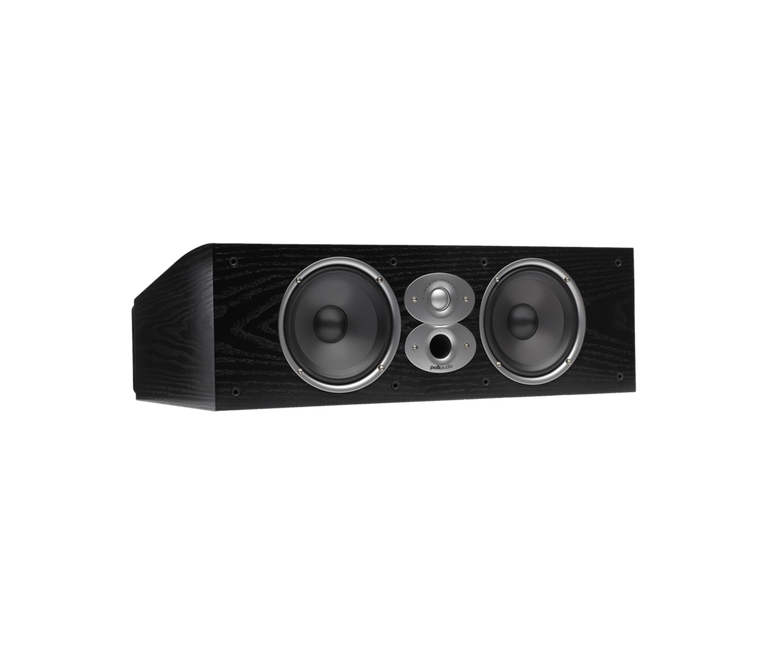

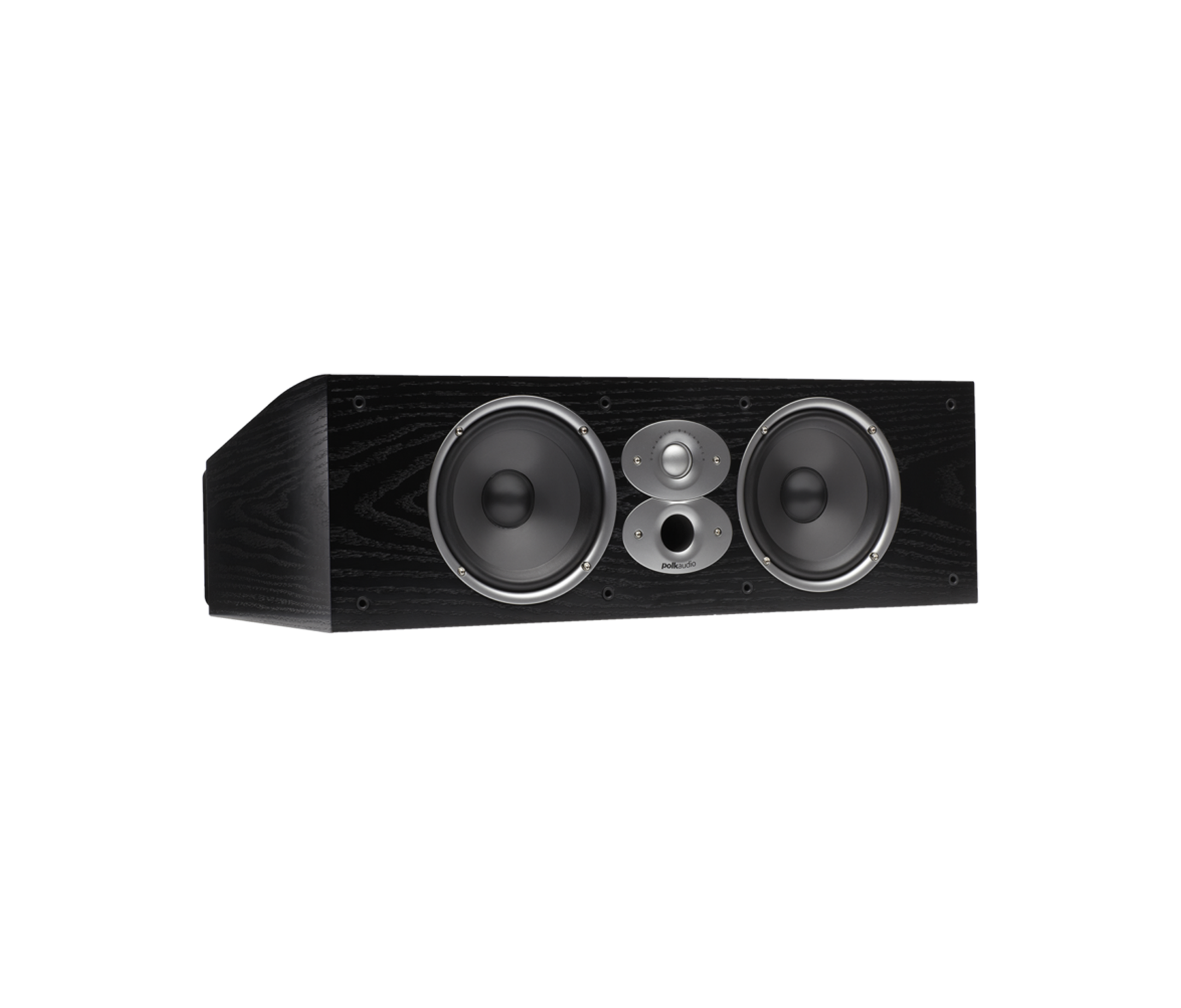

CENTER CHANNEL
- Total Pieces 1
- Availability US Internationally
- Orientation Horizontal
- Height 7.75" (19.69 cm)
- Width 24" (60.96 cm)
- Depth 14" (35.56 cm)
- Weight 29 lbs (13.15 kg)
- Front Array Driver Enclosure Type Dual PowerPort Bass Venting And ARC Port
-
Front Array Driver Complement
• (2) 6.5" (16.51 cm) d (Round) Dynamic Balance drivers polymer composite and rubber surrounds - Mid/Woofer
• (1) 1" (2.54 cm) d (Round) Dynamic Balance silk polymer dome - Tweeter - Total Frequency Response 45 Hz → 27,000 Hz
- Nominal Impedance 8 ohms
- Sensitivity (1 watt @ 1 meter) 90 dB
- Lower and Upper -3dB Limits 55 Hz → 26,000 Hz
- Recommended Amplifier Power Per Channel 20 watts → 200 watts
- Audio Input -
- Speaker Inputs (1) Pair of Dual 5-way Binding Posts - Gold-Plated
- Total Pieces 1
- Availability US Internationally
- Orientation Horizontal
- Height 7.75" (19.69 cm)
- Width 24" (60.96 cm)
- Depth 14" (35.56 cm)
- Weight 29 lbs (13.15 kg)
- Front Array Driver Enclosure Type Dual PowerPort Bass Venting And ARC Port
-
Front Array Driver Complement
• (2) 6.5" (16.51 cm) d (Round) Dynamic Balance drivers polymer composite and rubber surrounds - Mid/Woofer
• (1) 1" (2.54 cm) d (Round) Dynamic Balance silk polymer dome - Tweeter - Total Frequency Response 45 Hz → 27,000 Hz
- Nominal Impedance 8 ohms
- Sensitivity (1 watt @ 1 meter) 90 dB
- Lower and Upper -3dB Limits 55 Hz → 26,000 Hz
- Recommended Amplifier Power Per Channel 20 watts → 200 watts
- Audio Input -
- Speaker Inputs (1) Pair of Dual 5-way Binding Posts - Gold-Plated
