OVERALL
- Total Pieces 1

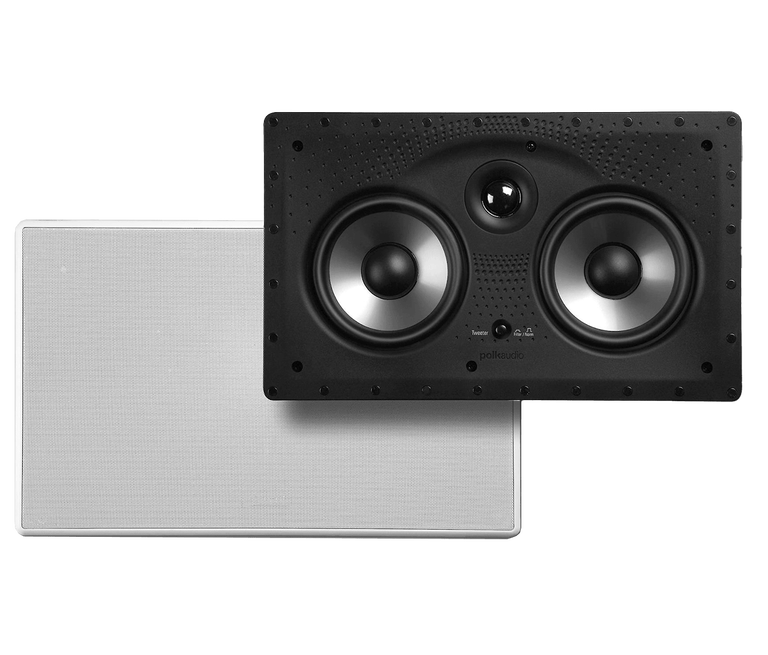

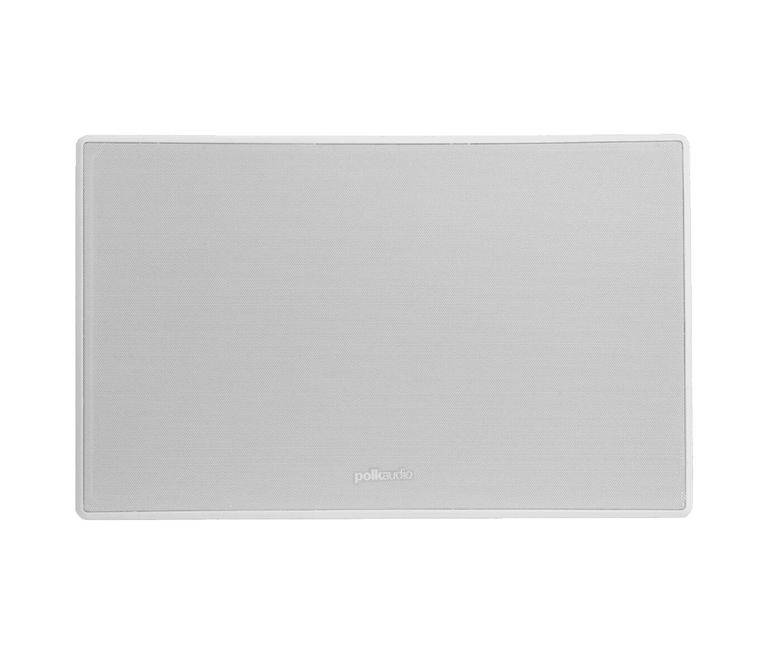

- Included Accessories • (1) Sheer Grille - White
- Optional Accessories • (1) PB LCiC - Pre-Construction Bracket - Sold Separate
- Carton 1 6.25" (15.88 cm) h x 11.25" (28.58 cm) w x 17" (43.18 cm) d - 9 lbs (4.08 kg)
IN-WALL
- Qty Included 1
- Availability US Internationally
- Orientation Horizontal
- Depth 3.875" (9.84 cm)
- Weight 6.6 lbs (2.99 kg)
- Driver Enclosure Type PowerPort Bass Vented
-
Driver Complement
• (2) 5.25" (13.34 cm) d (Round) Dynamic Balance Mineral Composite Polypropylene Cone with Rubber Surround Mid/Woofer - Mid/Woofer
• (1) 1" (2.54 cm) d (Round) Dynamic Balance Silk Polymer Composite Dome Tweeter - Tweeter - Grille Dimensions 9.31" (23.65 cm) h x 14.81" (37.62 cm) w
- Available Orientations Horizontal
- Shape Rectangle
- Dimensions 7.625" (19.37 cm) h x 13.125" (33.34 cm) w
- Clearnace Required for Mounting Dogs (add to each side of cutout) 3.375" (8.57 cm)
- Total Frequency Response 30 Hz → 27,000 Hz
- Nominal Impedance 8 ohms
- Sensitivity (1 watt @ 1 meter) 90 dB
- Lower and Upper -3dB Limits 50 Hz → 25,000 Hz
- Audio Inputs -
- Speaker Inputs (1) Pair of Push Connectors - Gold-Plated
- Recommended Amplifier Power Per Channel 10 watts → 150 watts
WARRANTY
- Lifetime Warranty Yes
