OVERALL
- Total Pieces 1
-
Included Accessories
• (4) Phillips Screws
• (1) Terminal Block Adaptor
WARRANTY
- Standard Warranty (When purchased from an Authorized Dealer) 1 Year
- Warranty When Bought from and Installed by an Authorized Dealer 2 Years
AMPLIFIER
- Height 1.813" (4.6 cm)
- Width 10.938" (27.78 cm)
- Depth 6.75" (17.15 cm)
- Weight 5 lbs (2.27 kg)
- RMS Continuous Power @ 4 Ohms 125 W x 4
- RMS Continuous Power @ 2 Ohms 200 W x 4
- Power Bridged @ 4 Ohms 400 W x 2
- Distortion at Rated Power <0.1%
- Minimum Impedance Bridged 4 Ohms
- Minimum Impedance Not Bridged 2 Ohms
- Signal-to-noise Ratio 105 dB
- Frequency Response 20 Hz-20 kHz
- Damping Factor >100
- Crossover Filter Slope (dB/octave) 12 dB/octave

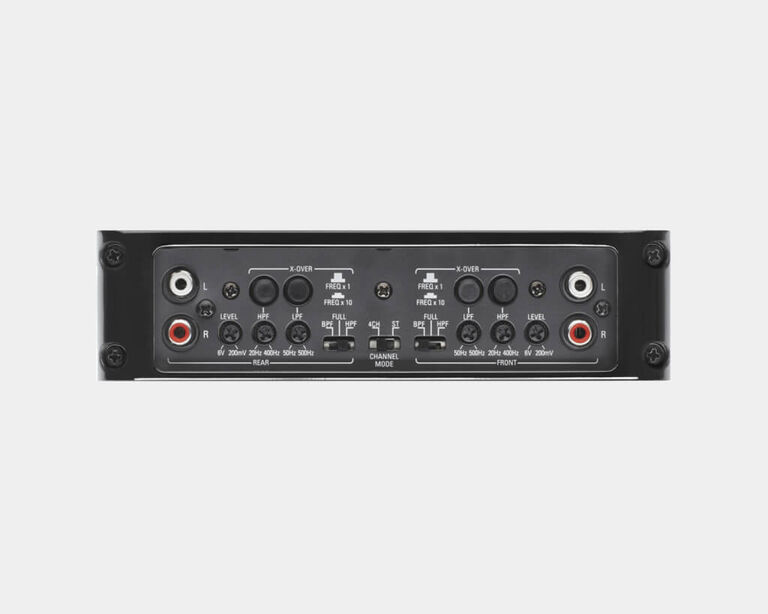

- Filter Switch (Front) 3-position (HPF, Full, BPF)
- High Pass Filter Frequency Range (Front) 20 Hz - 4 kHz
- Low Pass Filter Frequency Range (Front) 50 Hz - 5 kHz
- Front Gain Control 200 mV - 6 V
- Filter Switch Rear 3-position (HPF, Full, BPF)
- High Pass Filter Frequency Range Rear 20 Hz - 4 kHz
- Low Pass Filter Frequency Range Rear 50 Hz - 5 kHz
- Rear Gain Control 200 mV - 6 V
- Line Level Inputs Y N 200 mV - 6 V
- Line Level Outputs (Y/N) No
- LED Power Indicator No
- LED Protection Indicator No

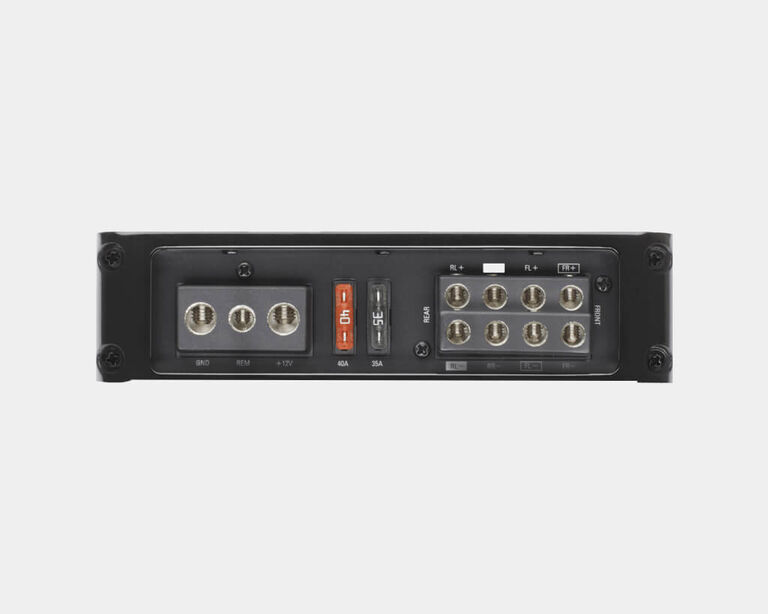

- Supply Voltage 10 V - 16 V
- Fusing & Power/Type (1) 40A (1) 35A ATC
- Power Connections 4 AWG
- Ground Connections 4 AWG
- Speaker Connections 12 AWG
- Channels 4
- Amplifier Class Bridgeable Class D MOSFET
