Specification
-
Speaker Type

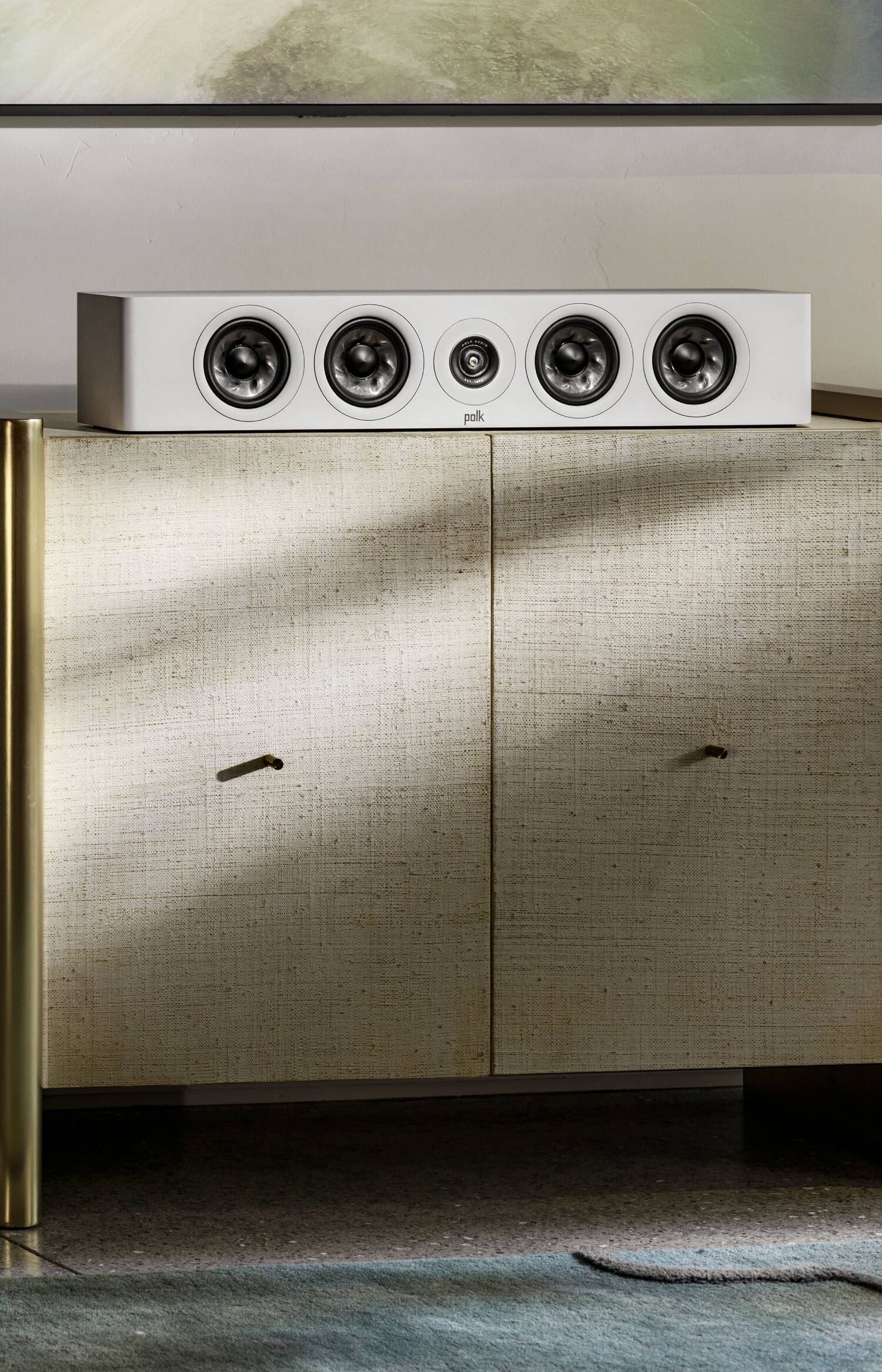

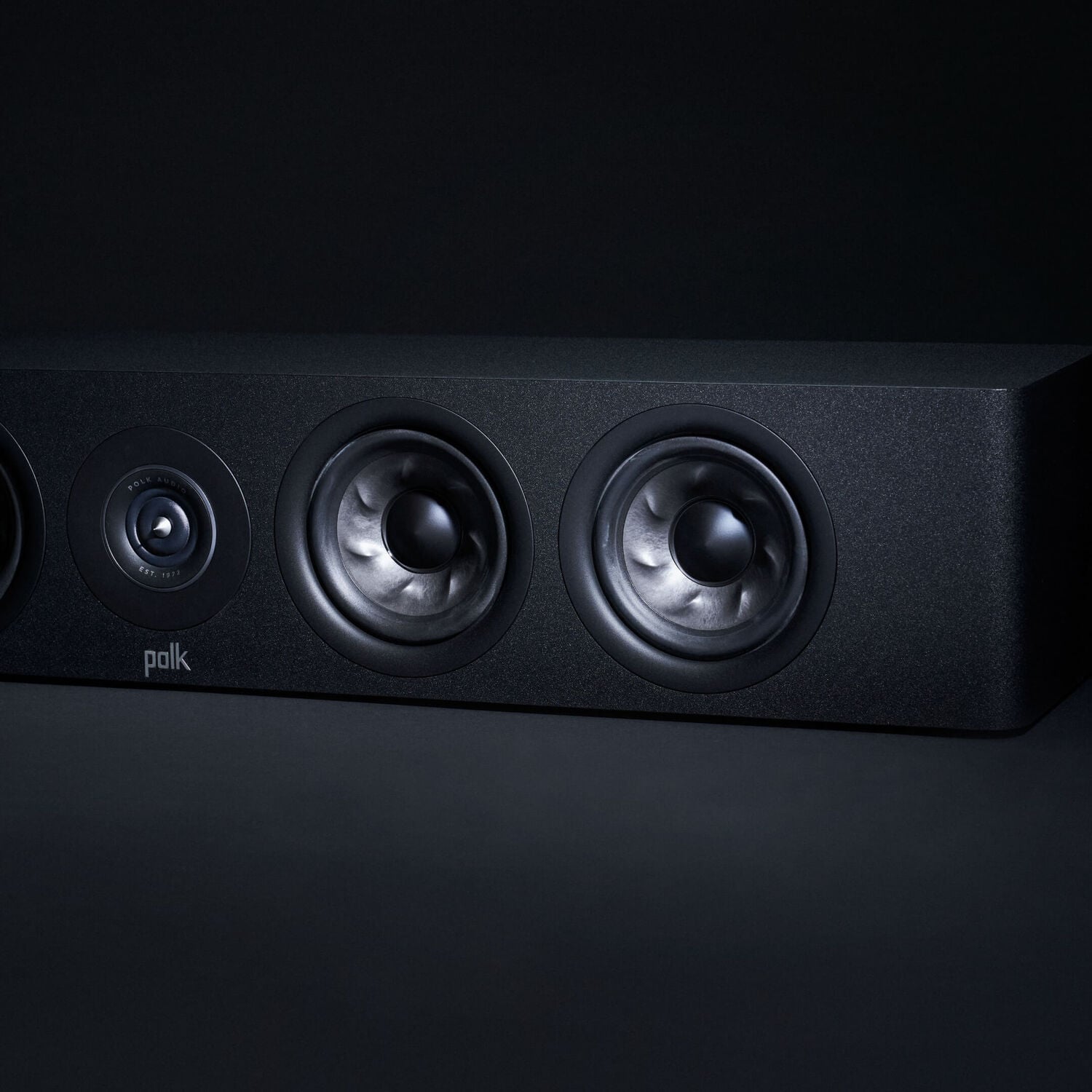

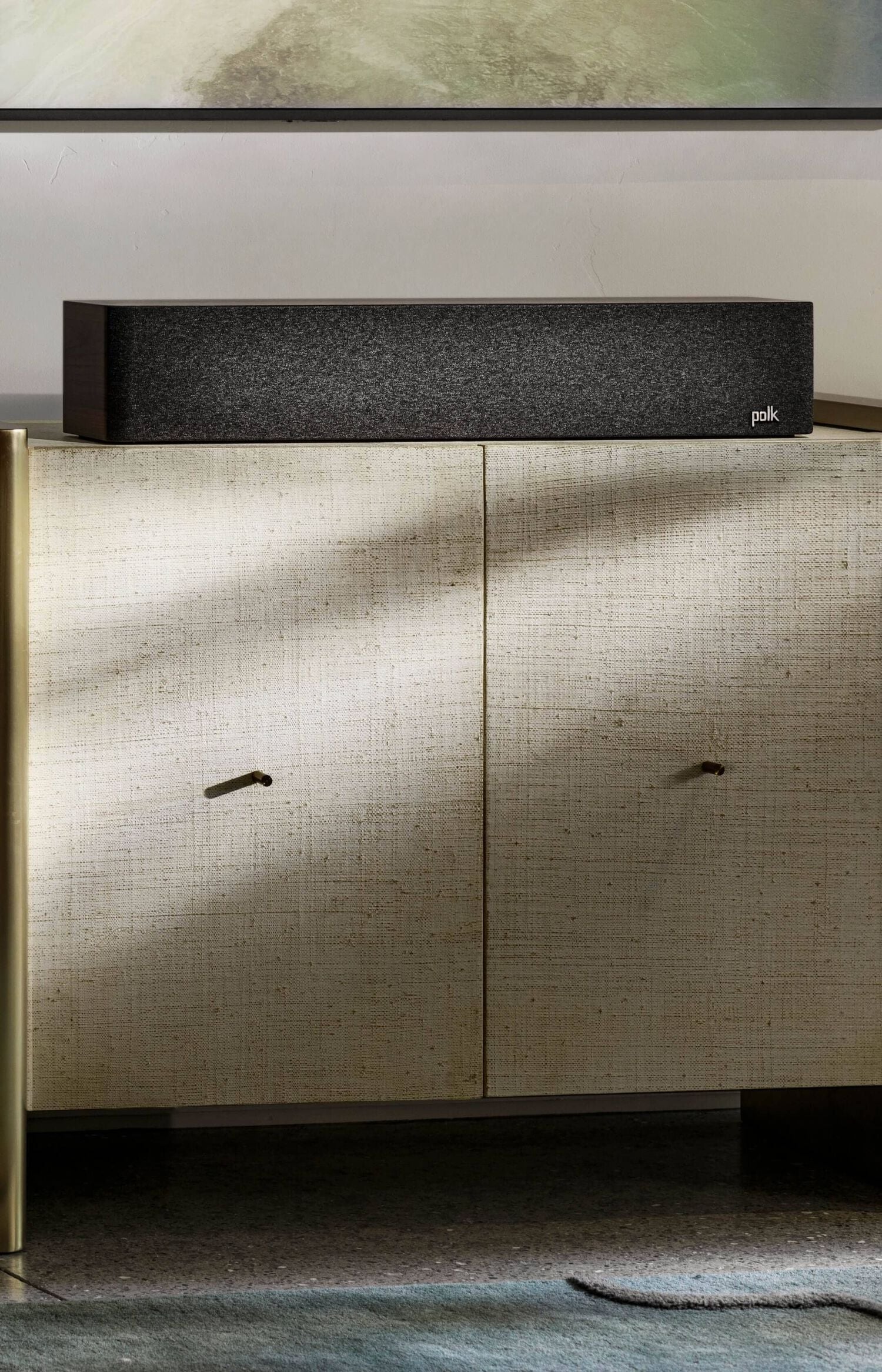

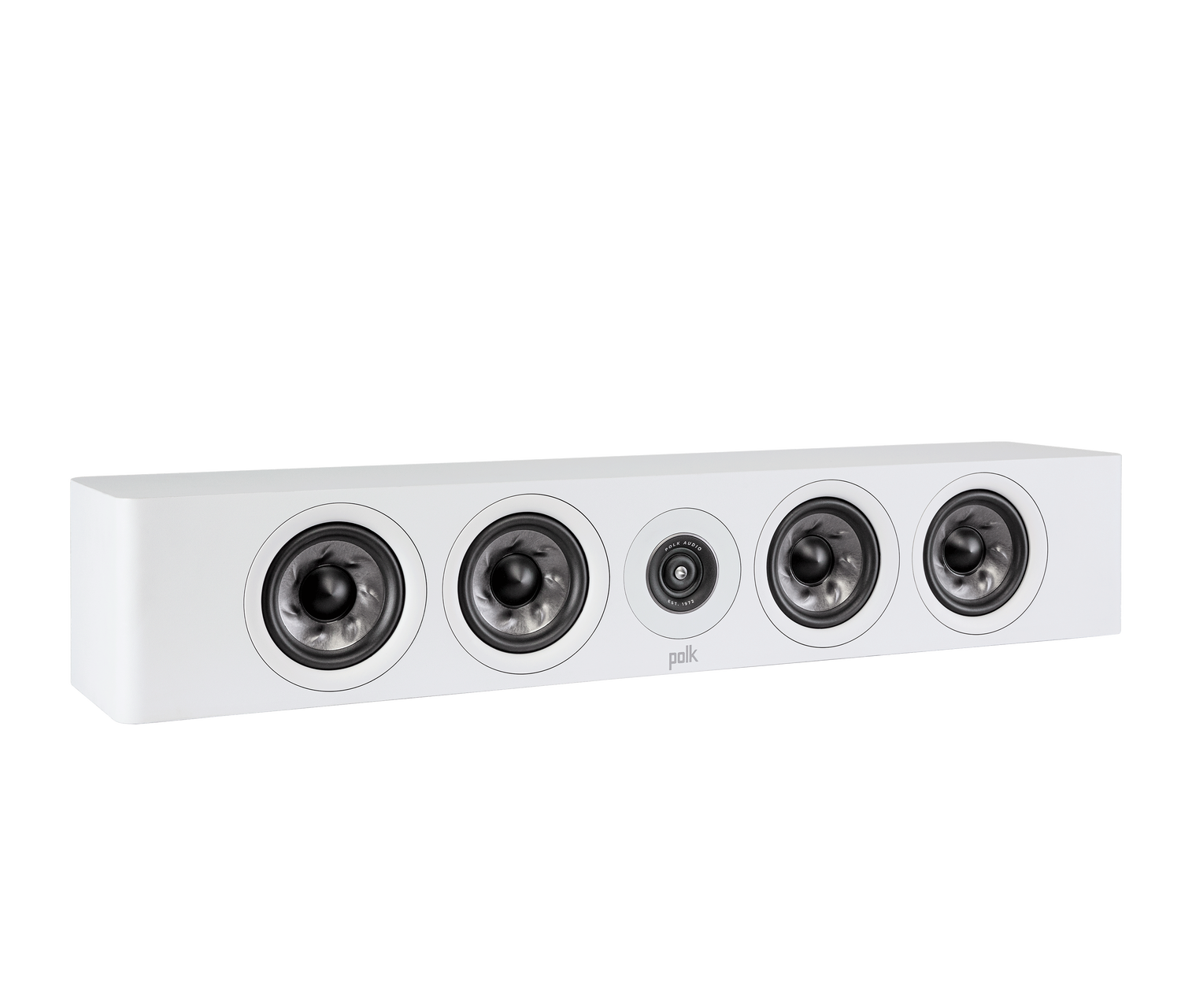

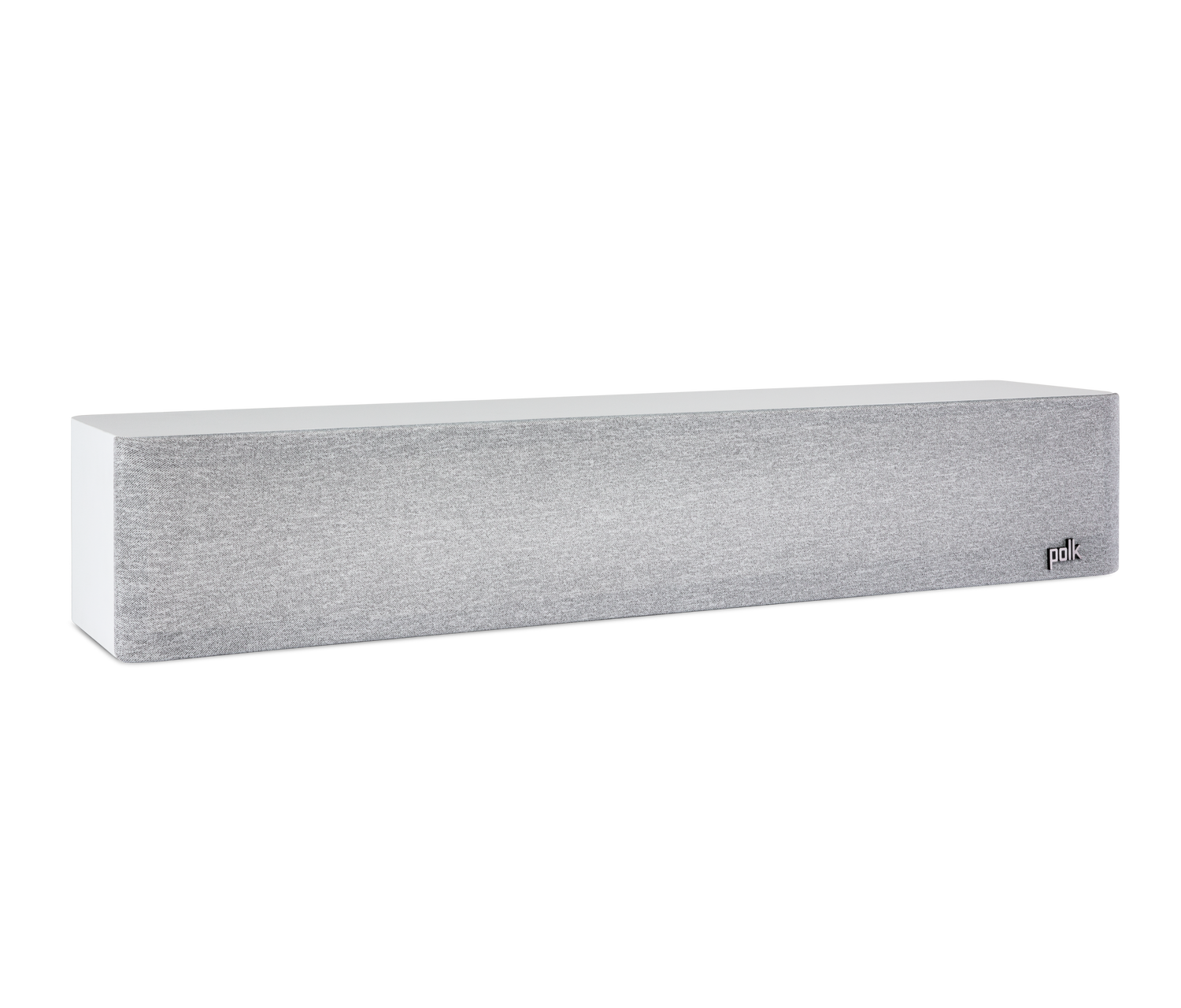

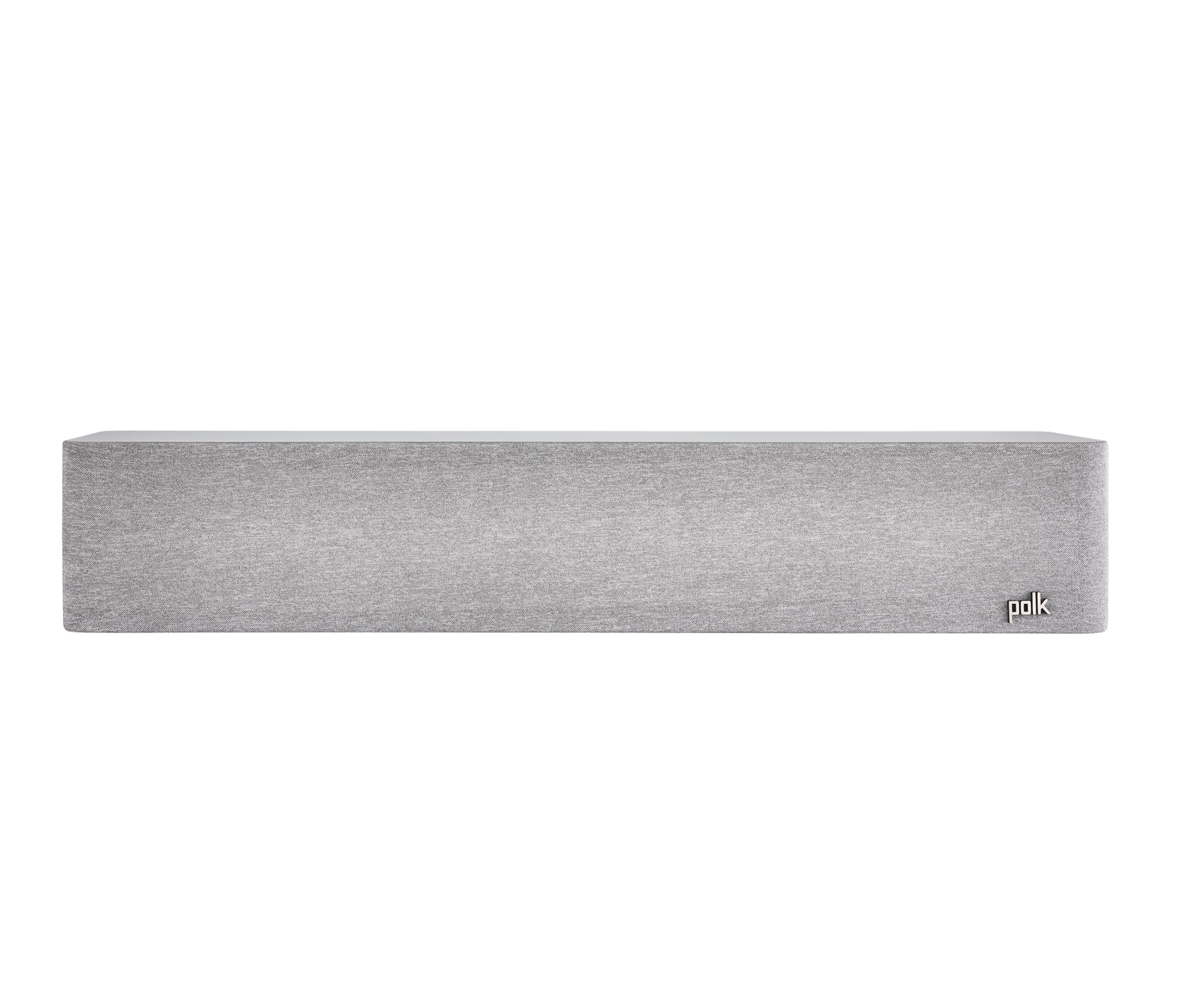

Low Profile L/C/R Center Channel
(Use as Left, center or right) - UOM (Sold As) Each

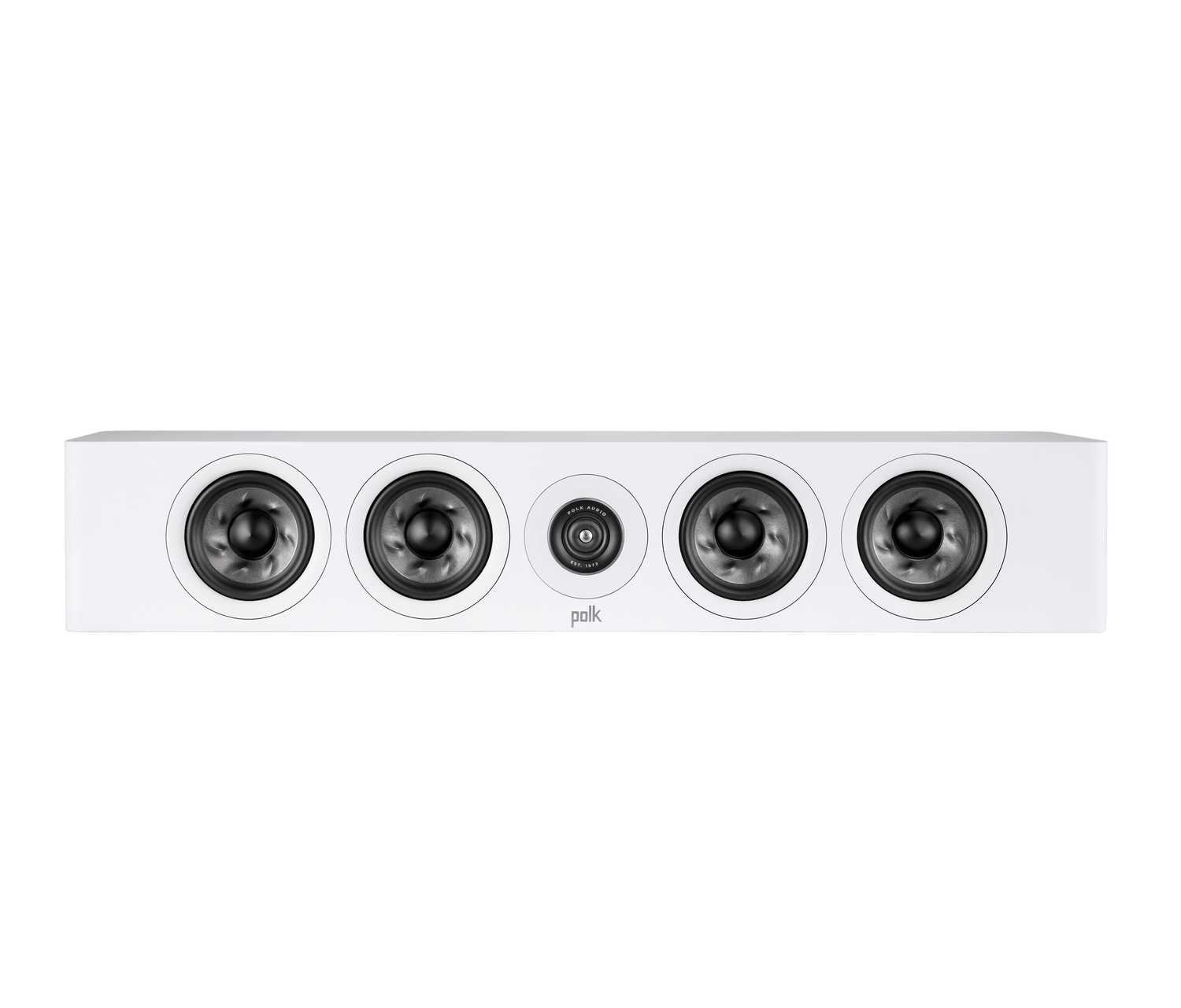

TRANSDUCER

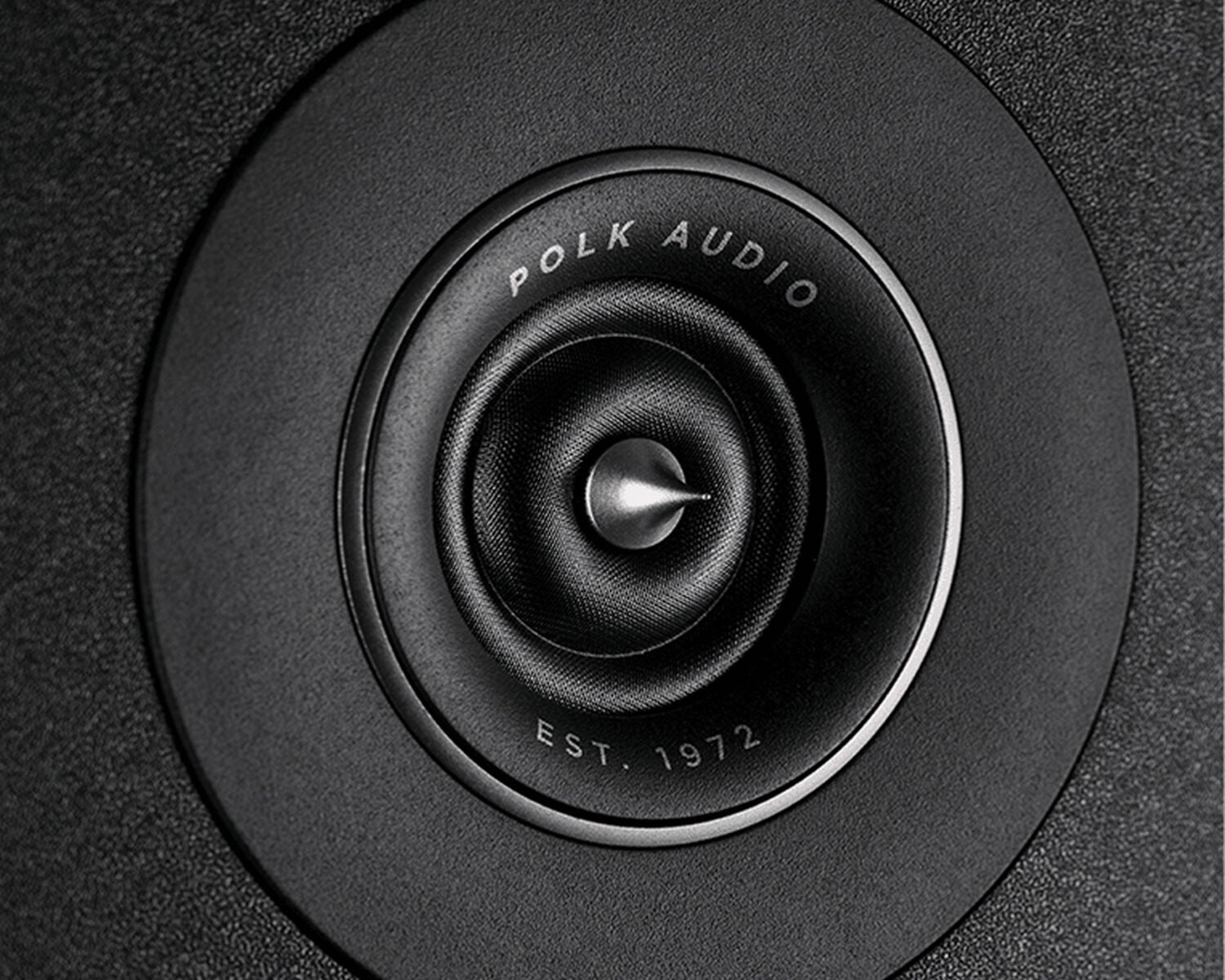

- Tweeter 1" Pinnacle Ring Radiator
- Mid-range/Mid-bass -

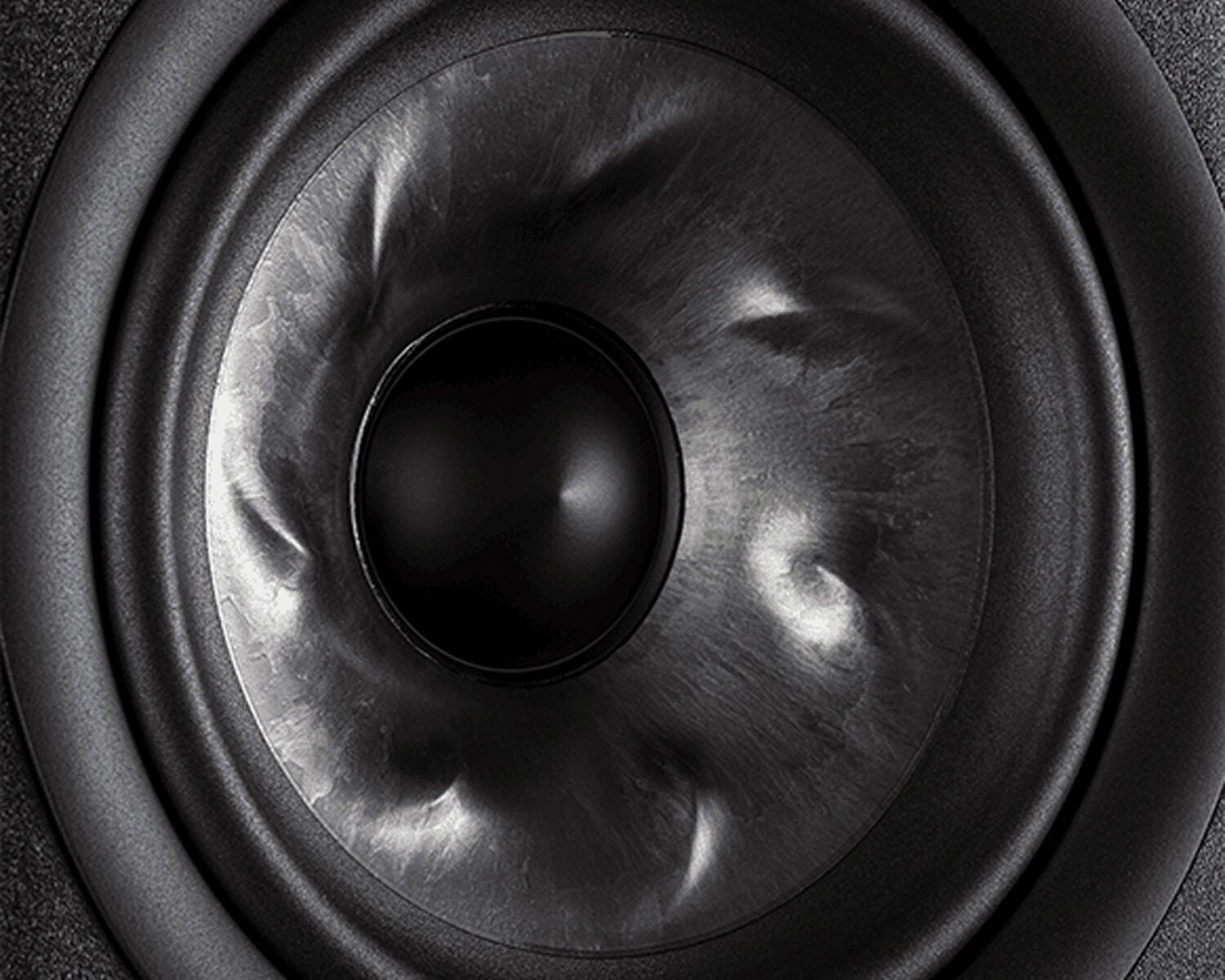

- Woofers Four 4” Turbine Cone
- Overall Frequency Response 50Hz - 50kHz
- Frequency Response (-3dB limits) 75Hz - 35kHz
- Recommended Amplifier Power 25 - 200W
- Amplifier Output Compatibility 8Ω / 6Ω / 4Ω
- Minimum Impedance (ohms) 3.9Ω
- Sensitivity (2.83V/1m) 87dB
CROSSOVER
- Tweeter/Mid-range Crossover Frequency 2700
- Mid-range/Mid-bass Crossover Frequency 1400
MEASUREMENTS
-
Product Dims W x H x D (Includes width of feet)
762 x 141 x 187.5mm
30 x 5.5 x 7.4 in - Product Weight (each) 20 lbs/9 kg
- Shipping Weight 23.7 lbs/10.8 kg
CABINETRY
- New CRC (Mid-Range Enclosure Type) -
- Mid-Bass / Woofer Enclosure Type Sealed
- Available Finishes Black / Walnut / White
- Feet Rubber pads

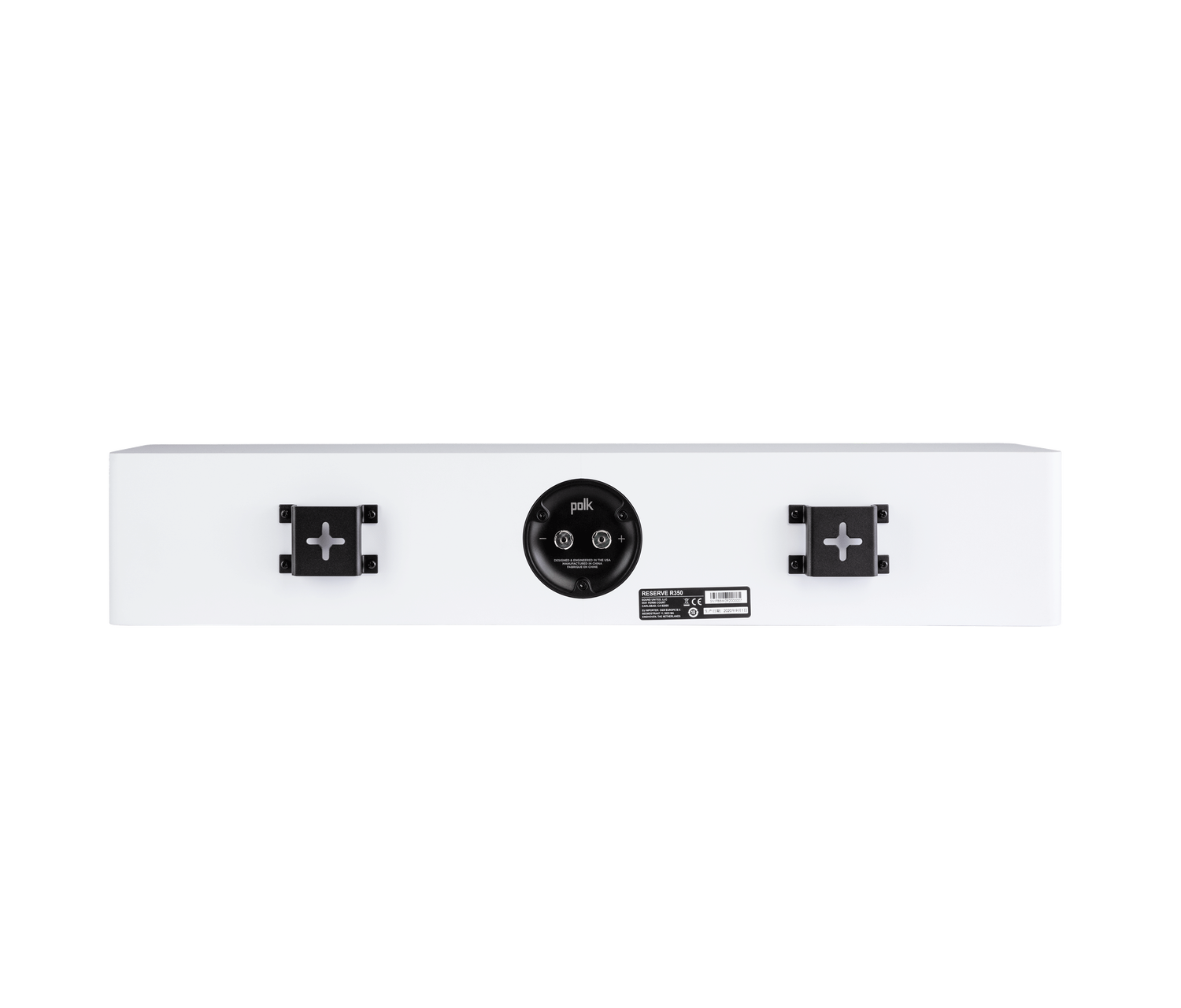

- Wall-Mountable (keyhole slots) Yes
- Binding Posts: Nickel-plated 5-Way Single
Certifications Non-Safety and Regulatory
- Hi-Res Certified Yes
- IMAX Certified No
-
Shipping Dims (WxHxD)
867 x 264 x 230mm
(34.1 x 10.4 x 9) in
